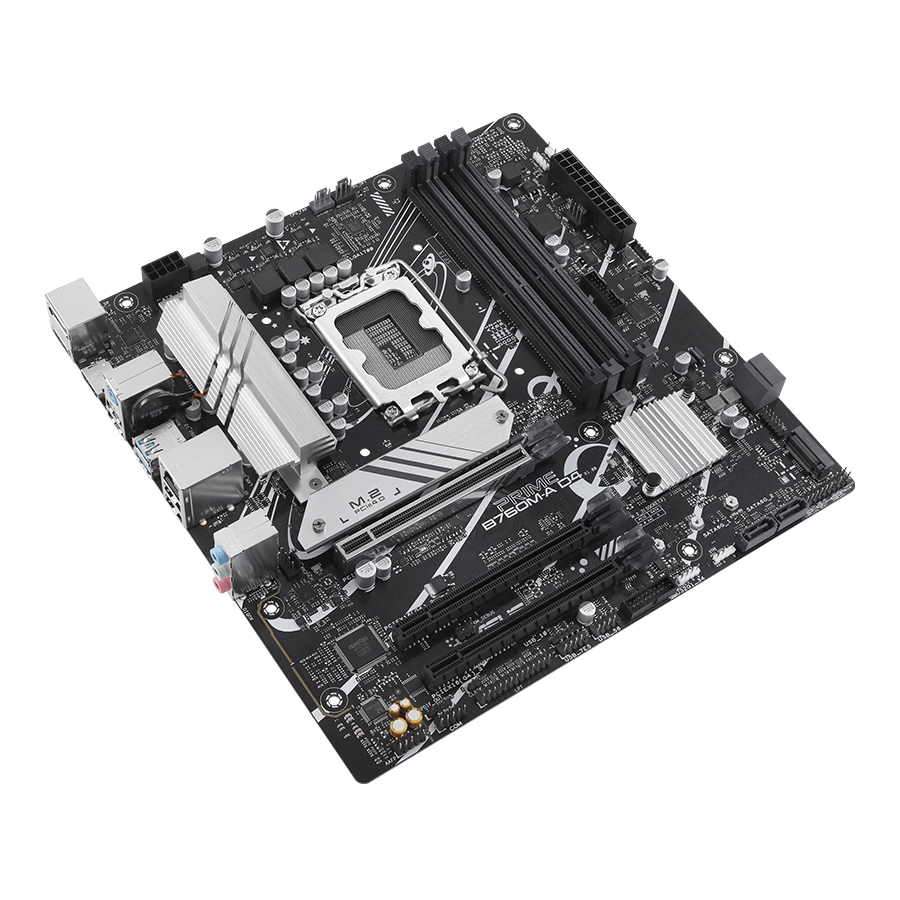

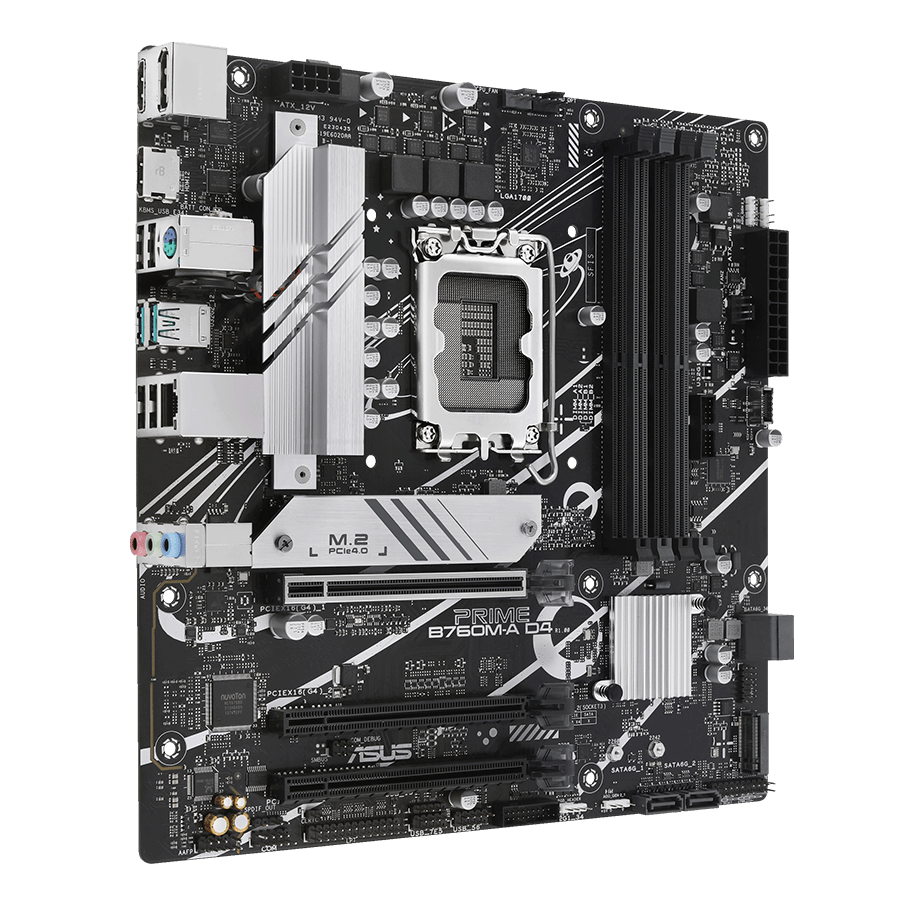

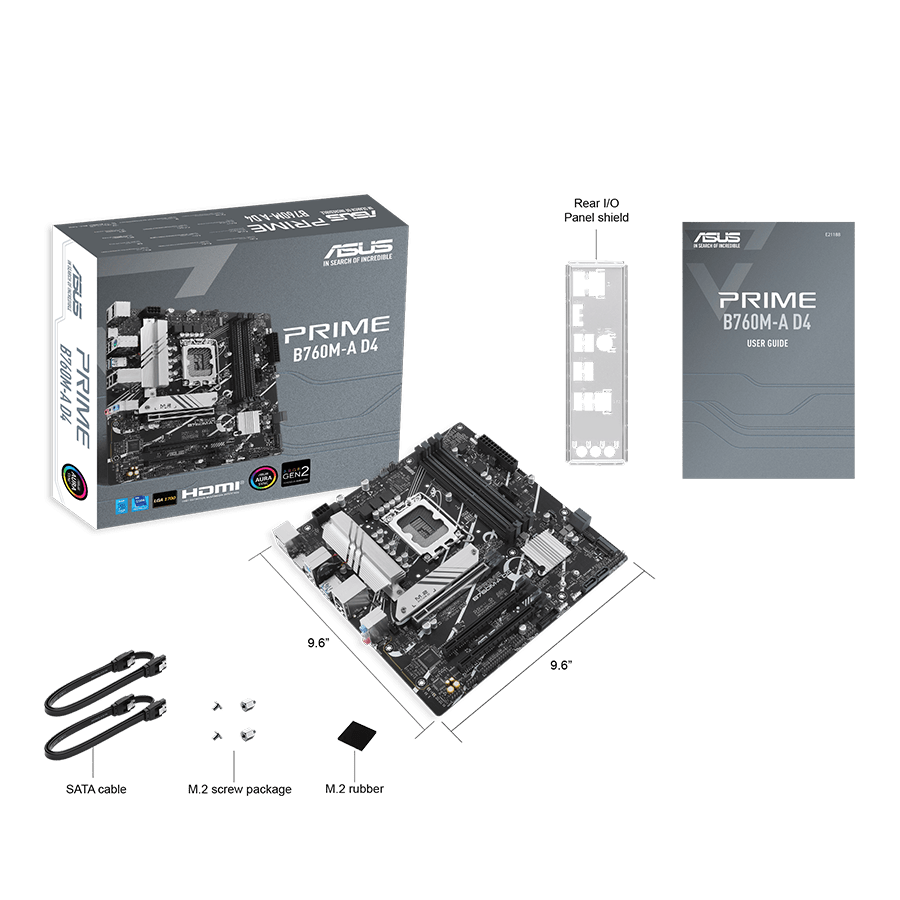

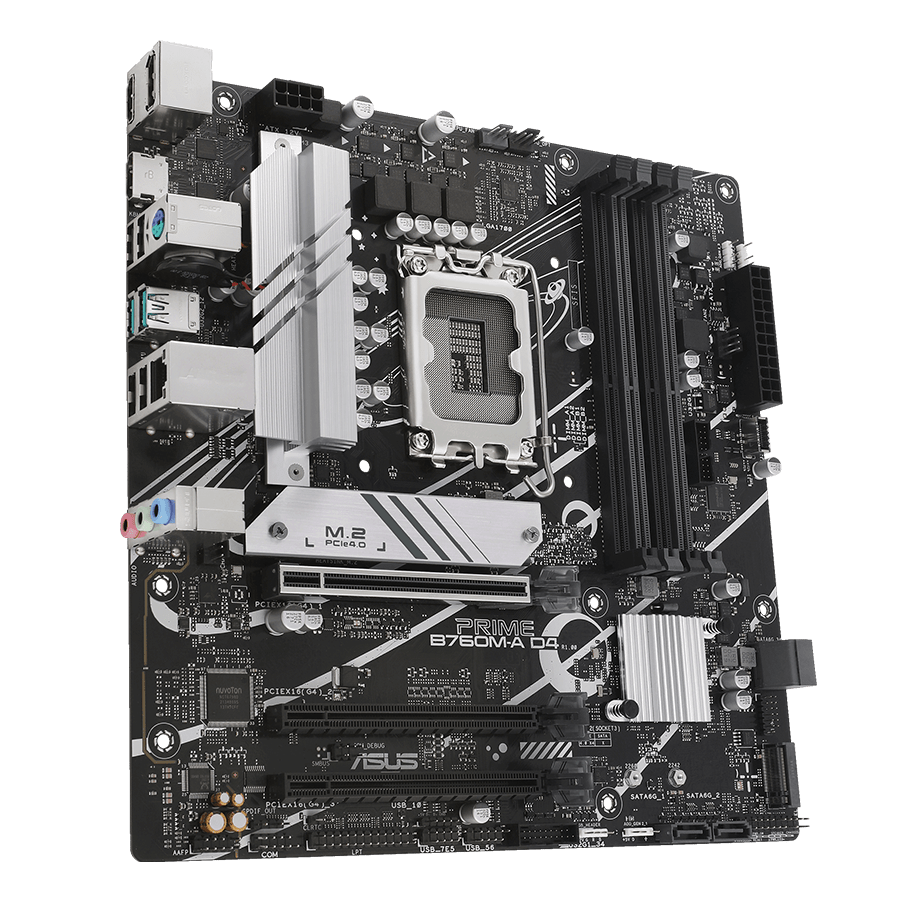

ASUS Motherboard PRIME B760M-A D4
ASUS PRIME B760M-A D4 MOTHERBOARD 13th gen Intel chipset B760 supports socket LGA-1700 supports PCI Express 4.0 supports SSD M.2 with lighting header ARGB
Product image gallery
About this product
Details & use
ASUS PRIME B760M-A D4 MOTHERBOARD 13th gen Intel chipset B760 supports socket LGA-1700 supports PCI Express 4.0 supports SSD M.2 with lighting header ARGB
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/6
Specifications
Technical specs
Motherboard
- Platform
- Intel
- Form factor
- m-ATX
- Clear CMOS
- Yes
- BIOS
- 128MB Flash ROM, UEFI AMI BIOS
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
- Chipset
- Intel B760
- Series
- Prime
Processor
- CPU generation
- 13th gen, 12th gen
- CPU socket
- LGA-1700
- Socket
- Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
- CPU power connector
- یک pcs 8 پین
Memory
- RAM slots
- 4 pcs
- Memory type
- DDR4
- RAM capacity
- 128 GB
- Memory
- up to 5333 MHz
Expansion Slots
- PCIe x4
- No
- PCIe x1
- No
- PCIe x16
- سه slot PCIe 4.0 x16
Storage
- M.2
- دو pcs PCIe 4.0
- SATA III
- 4 pcs

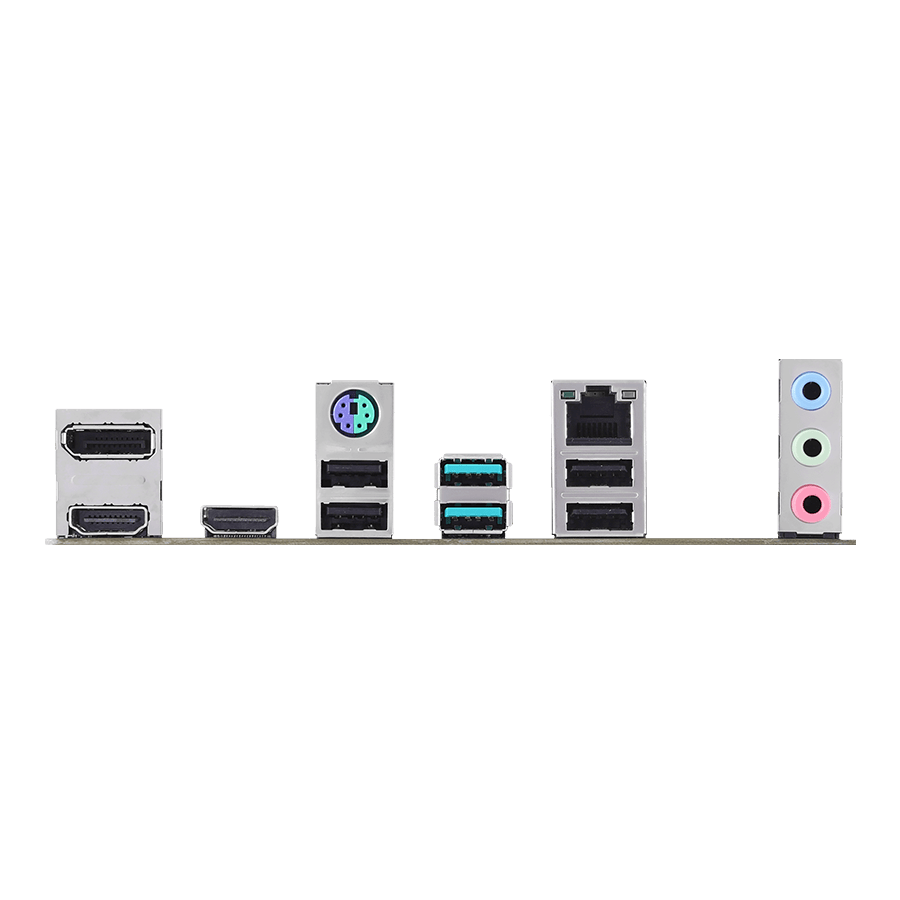

I/O & Connectivity
- LAN
- Realtek 2.5Gb Ethernet
- USB 2.0
- 4 pcs
- USB 3.0
- No
- USB 3.1
- No
- USB 3.2
- 2 PCS
- HDMI
- Yes
- DisplayPort
- Yes
- Thunderbolt
- No
- Wi-Fi
- No
- Bluetooth
- No
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Audio channels
- 7.1 کانال
- Digital audio
- No
Power
- Power switch
- No
Other specs
- Configure
- دو کاناله
- Intel Optane
- No
- PCI
- No
- Multi-GPU support
- No
- D-Sub
- No
- DVI
- No
- 3.5 mm jack
- 3 pcs
- Debug display
- No
- LED color
- No
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Platform: Intel
CPU generation: 13th gen
Form factor: m-ATX
CPU socket: LGA-1700
