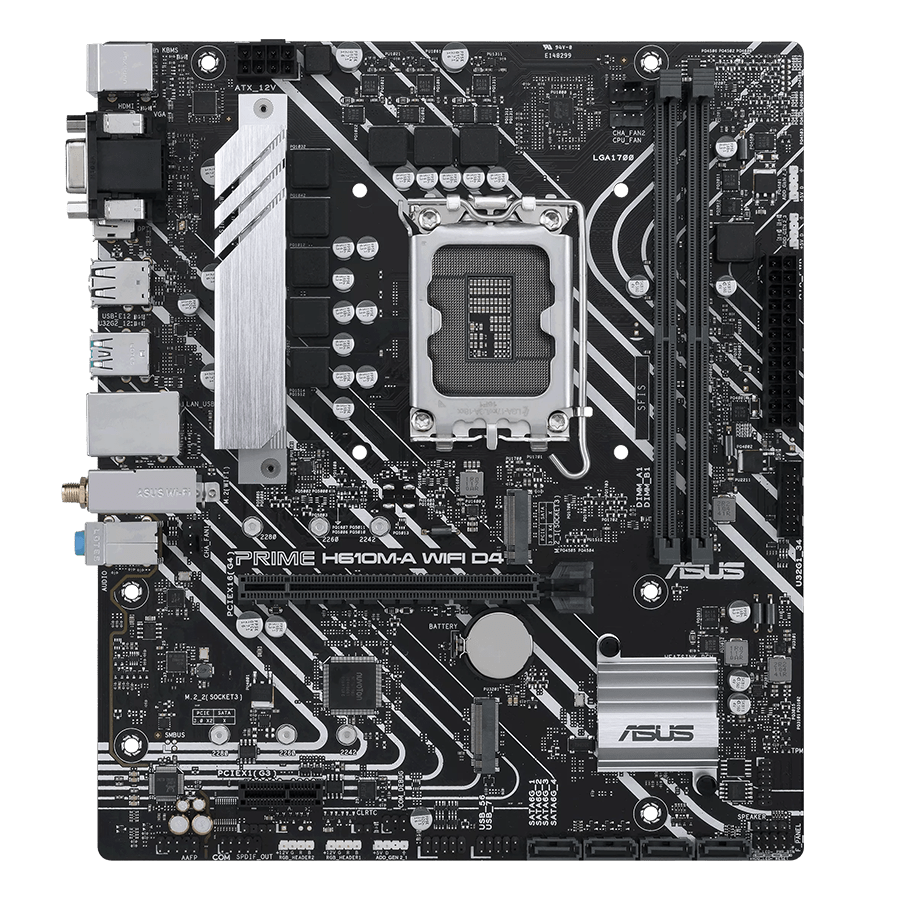

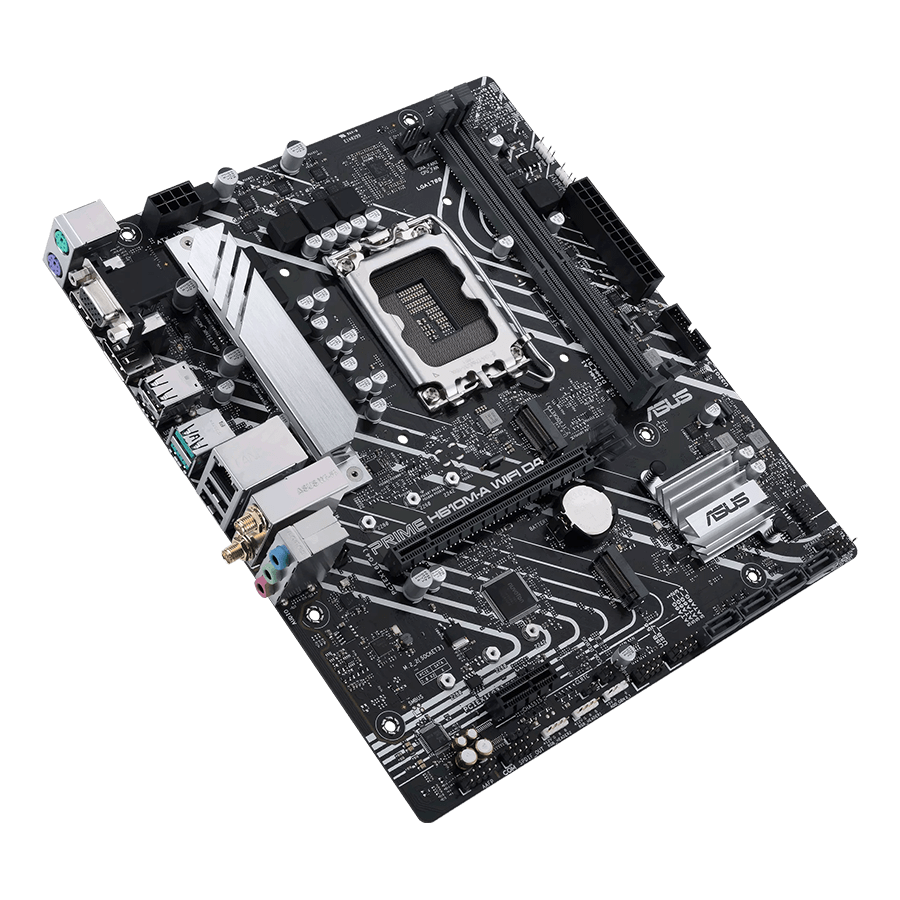

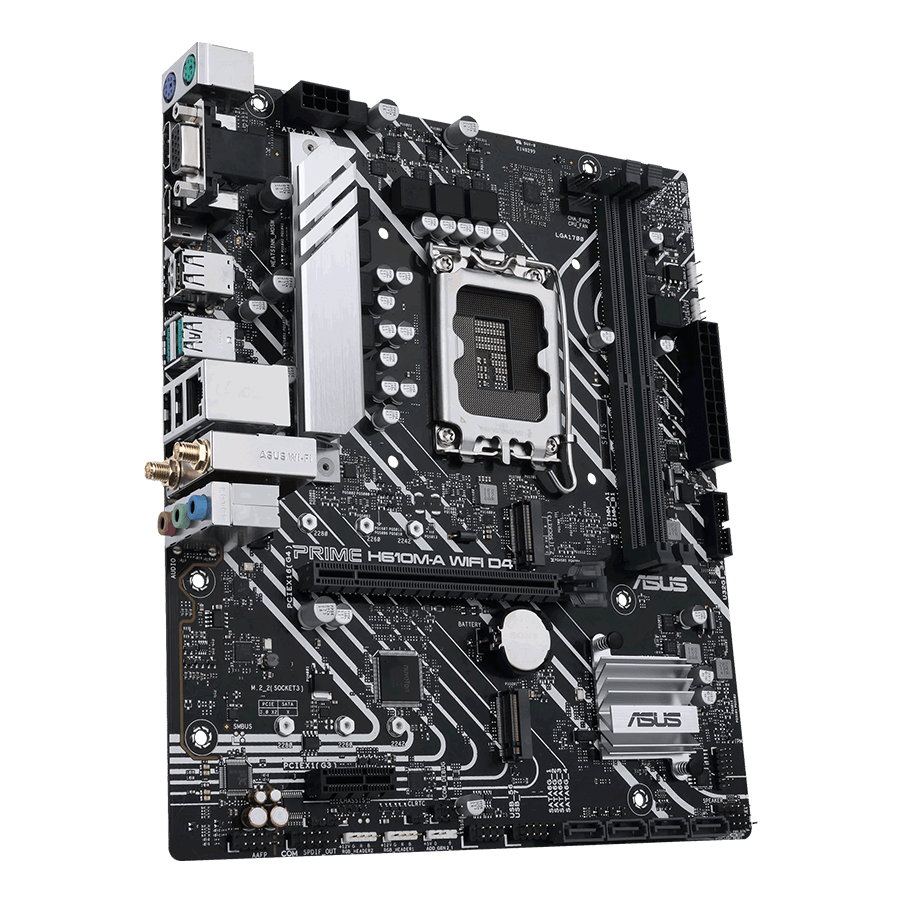

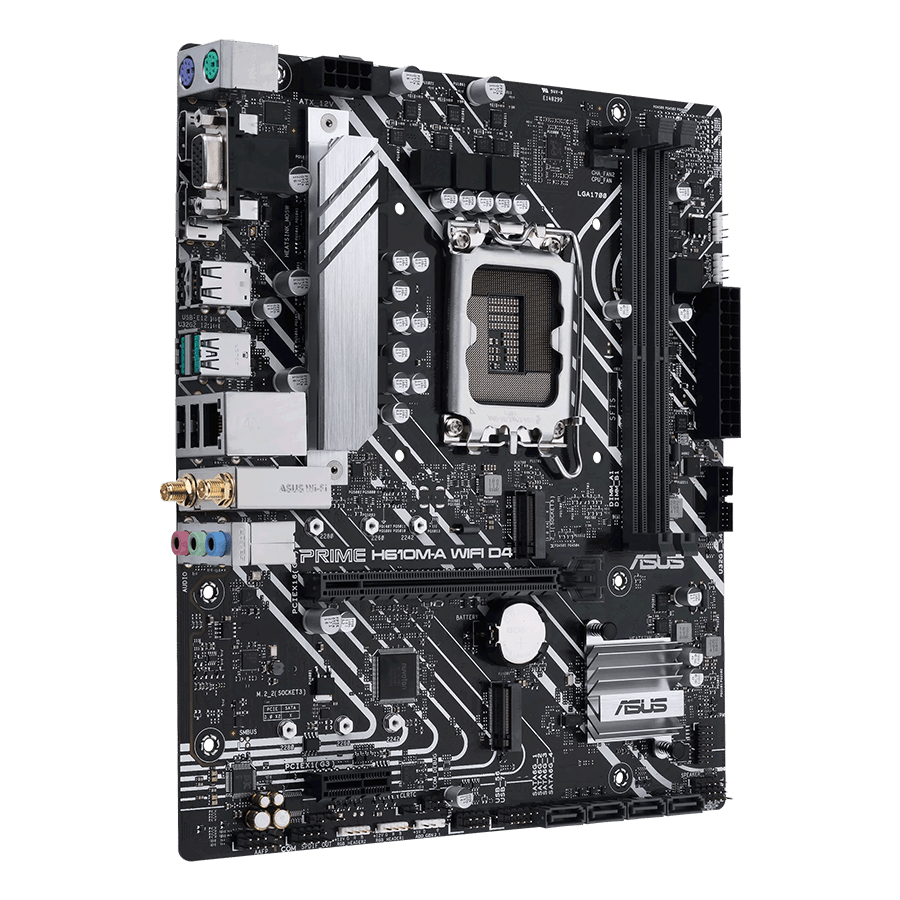

ASUS Motherboard PRIME H610M-A WIFI D4
ASUS PRIME H610M-A WIFI D4 MOTHERBOARD 12th gen Intel chipset H610 supports socket LGA-1700 supports PCI Express 4.0 supports SSD M.2 with lighting header ARGB
Product image gallery
About this product
Details & use
ASUS PRIME H610M-A WIFI D4 MOTHERBOARD 12th gen Intel chipset H610 supports socket LGA-1700 supports PCI Express 4.0 supports SSD M.2 with lighting header ARGB
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/6
Specifications
Technical specs
Motherboard
- Platform
- Intel
- Chipset
- Intel H610
- Form factor
- m-ATX
- Clear CMOS
- Yes
- BIOS
- 128MB Flash ROM, UEFI AMI BIOS
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
Processor
- CPU socket
- LGA-1700
- Socket
- Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
- CPU generation
- 13th gen, 12th gen
- CPU power connector
- یک pcs 8 پین
Memory
- RAM slots
- 2 PCS
- Memory type
- DDR4
- RAM capacity
- 64 GB
- Memory
- up to 3200 MHz
Expansion Slots
- PCIe x16
- یک slot PCIe 4.0 x16
- PCIe x4
- No
- PCIe x1
- 1 PCS, PCIe 3.0
Storage
- M.2
- دو pcs PCIe 3.0
- SATA III
- 4 pcs

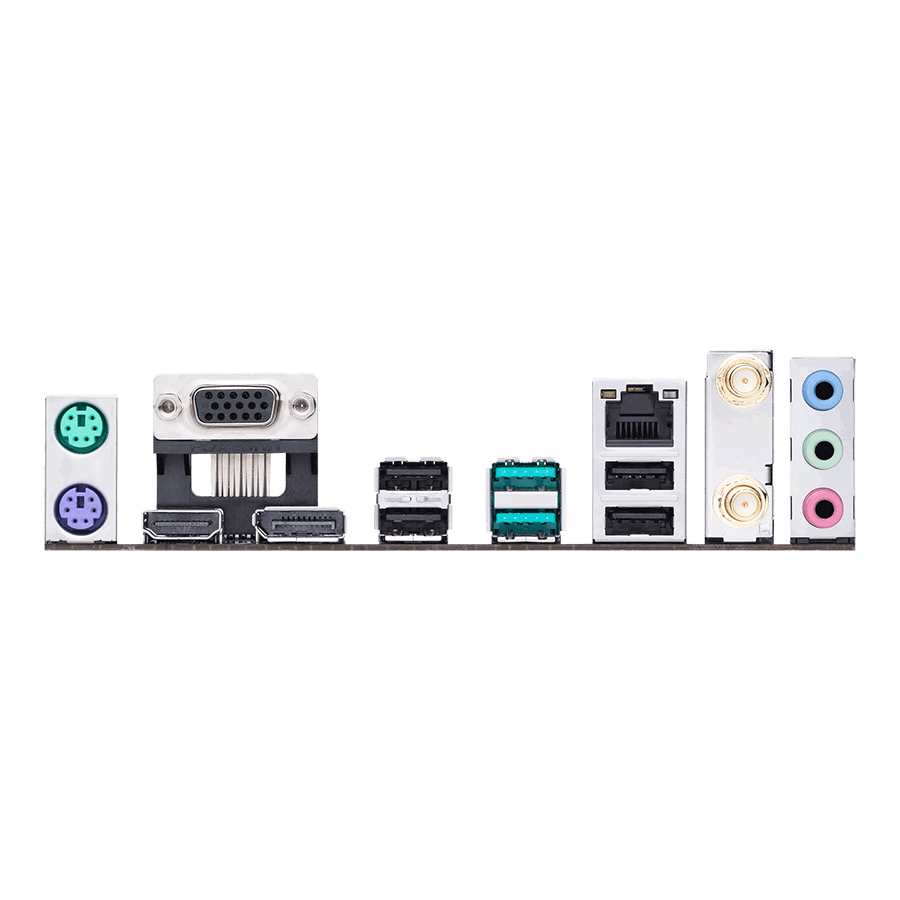

I/O & Connectivity
- USB 2.0
- 4 pcs
- USB 3.0
- No
- USB 3.1
- No
- USB 3.2
- 2 PCS
- HDMI
- Yes
- DisplayPort
- Yes
- Thunderbolt
- No
- LAN
- Intel 1Gb Ethernet port
- Communication protocols
- supports frequency 2.4/5 گیگاهرتز, 802.11a/b/g/n/ac
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Audio channels
- 7.1 کانال
- Digital audio
- No
- Wi-Fi
- Yes
- Bluetooth
- نسخه 5.0
Power
- Power switch
- No
Other specs
- Configure
- دو کاناله
- PCI
- No
- Multi-GPU support
- No
- Intel Optane
- No
- D-Sub
- Yes
- DVI
- No
- 3.5 mm jack
- 3 pcs
- Debug display
- No
- LED color
- No
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Platform: Intel
Chipset: Intel H610
Form factor: m-ATX
CPU socket: LGA-1700
