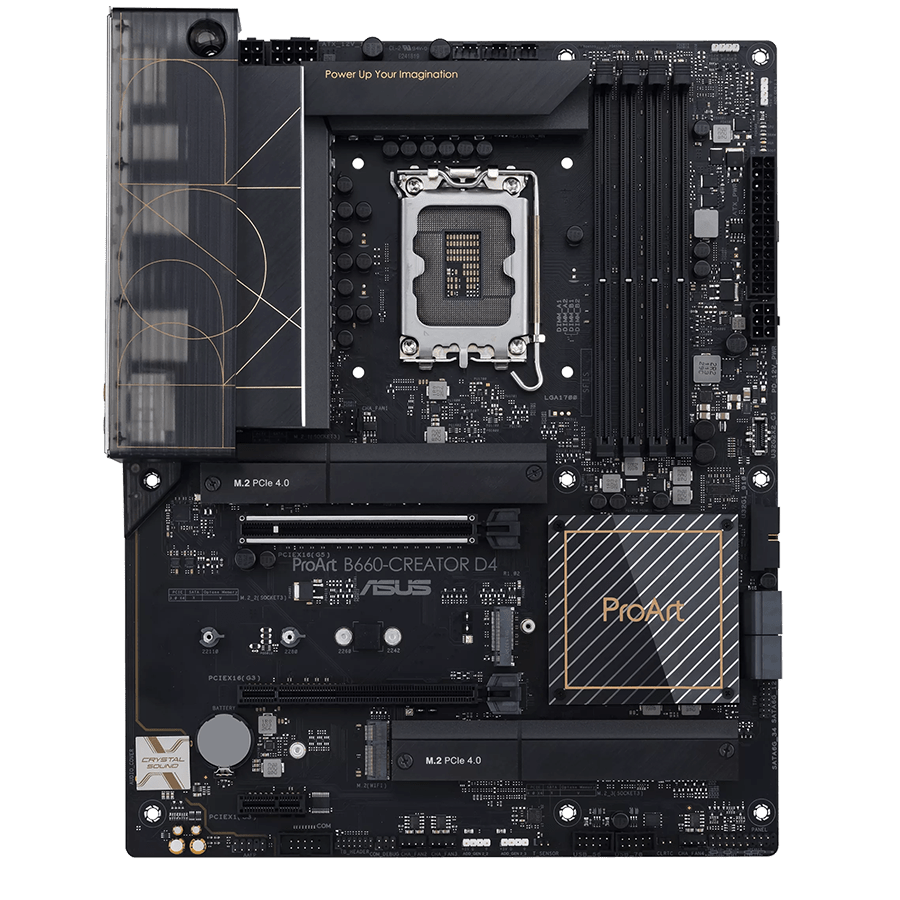

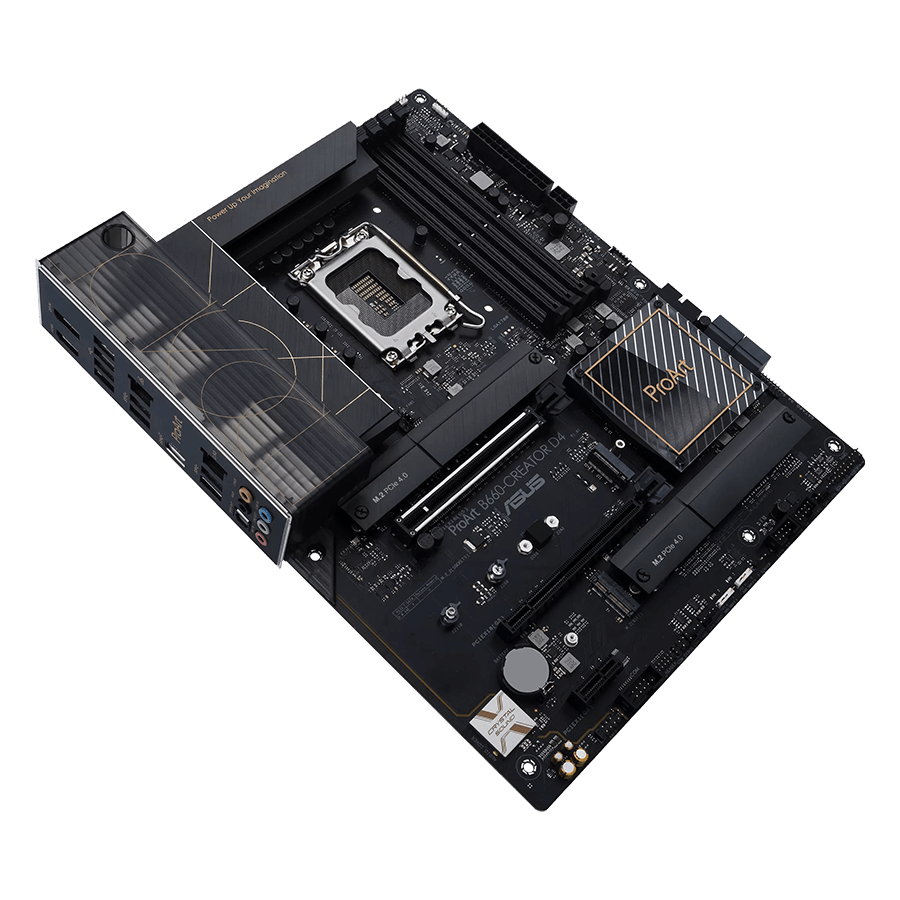

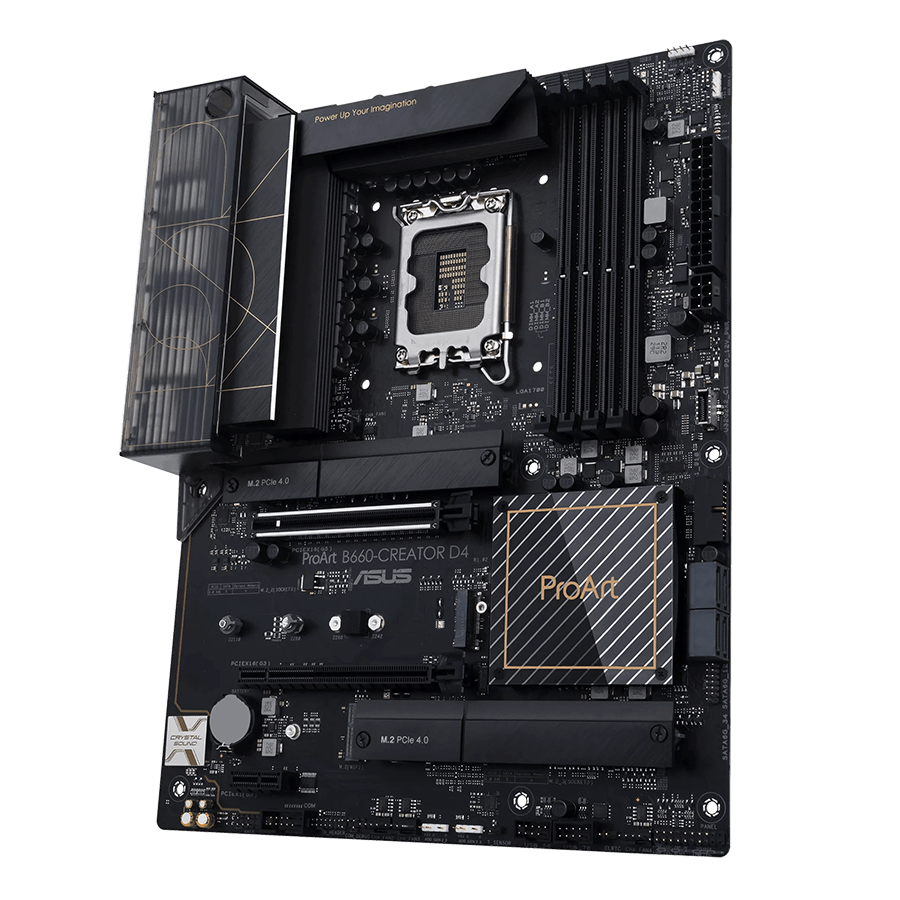

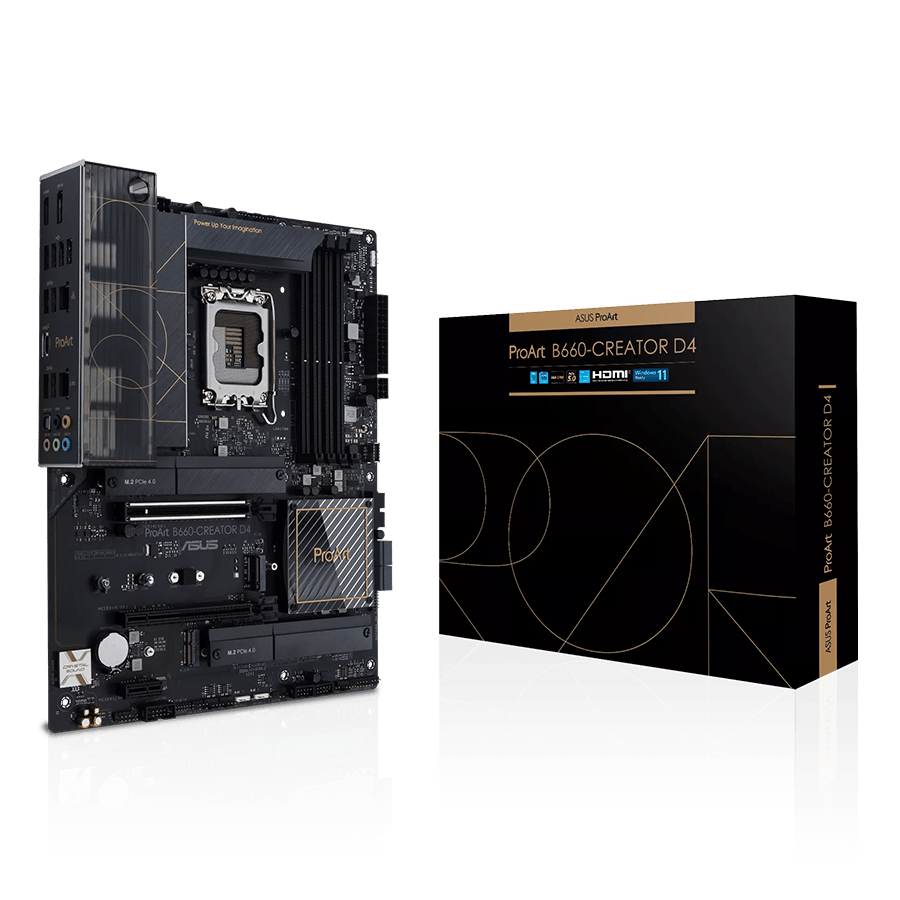

ASUS Motherboard ProArt B660-CREATOR D4
ASUS ProArt B660-CREATOR D4 MOTHERBOARD 12th gen Intel chipset B660 supports socket LGA-1700 supports PCI Express 5.0 supports SSD M.2 with lighting header ARGB
Product image gallery
About this product
Details & use
ASUS ProArt B660-CREATOR D4 MOTHERBOARD 12th gen Intel chipset B660 supports socket LGA-1700 supports PCI Express 5.0 supports SSD M.2 with lighting header ARGB
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/7
Specifications
Technical specs
Motherboard
- Platform
- Intel
- Chipset
- Intel B660
- BIOS
- - ASUS UEFI BIOS EZ Mode
- Clear CMOS
- Yes
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
- Form factor
- ATX
- Series
- ProArt
Processor
- CPU power circuit
- 12+1 فاز
- CPU socket
- LGA-1700
- Socket
- Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
- CPU generation
- 12th gen
- CPU power connector
- یک pcs 8 پین, یک pcs 4 پین
Memory
- RAM slots
- 4 pcs
- Memory type
- DDR4
- RAM capacity
- 128 GB
- Memory
- up to 5333 MHz
Expansion Slots
- PCIe x1
- 1 PCS, PCIe 3.0
- PCIe x4
- No
- PCIe x16
- یک slot PCIe 3.0 x16, یک slot PCIe 5.0 x16
Storage
- M.2
- یک pcs PCIe 3.0, دو pcs PCIe 4.0
- SATA III
- 4 pcs
- RAID
- RAID 0/1/5/10

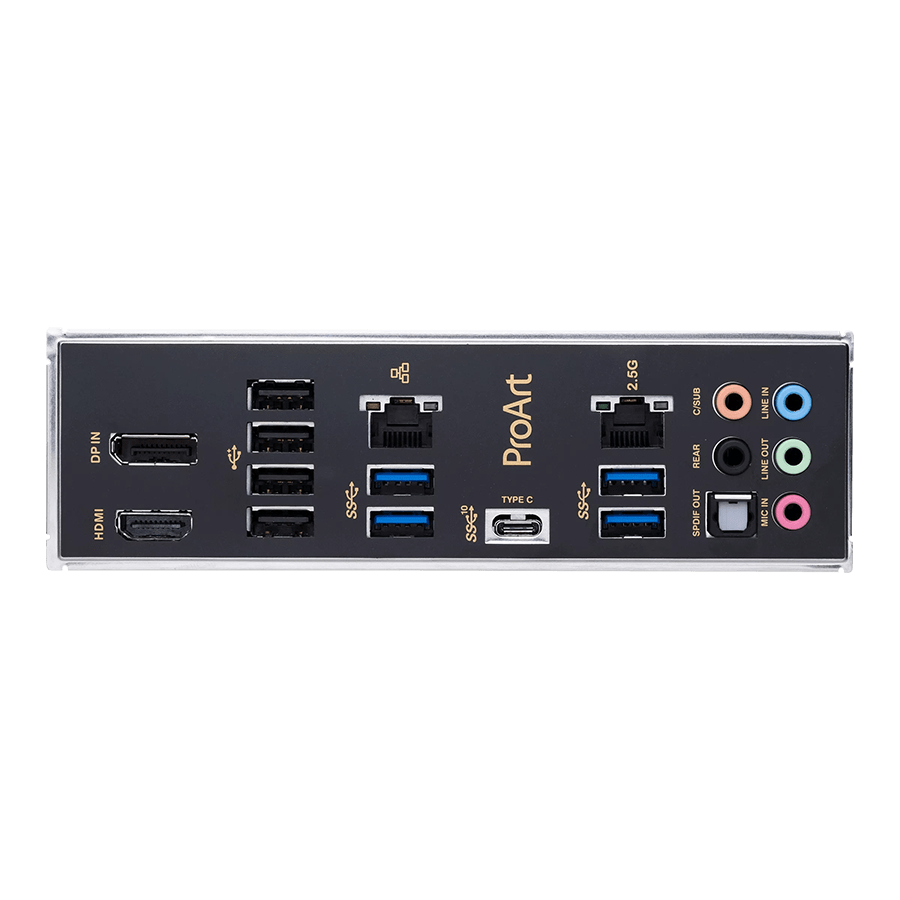

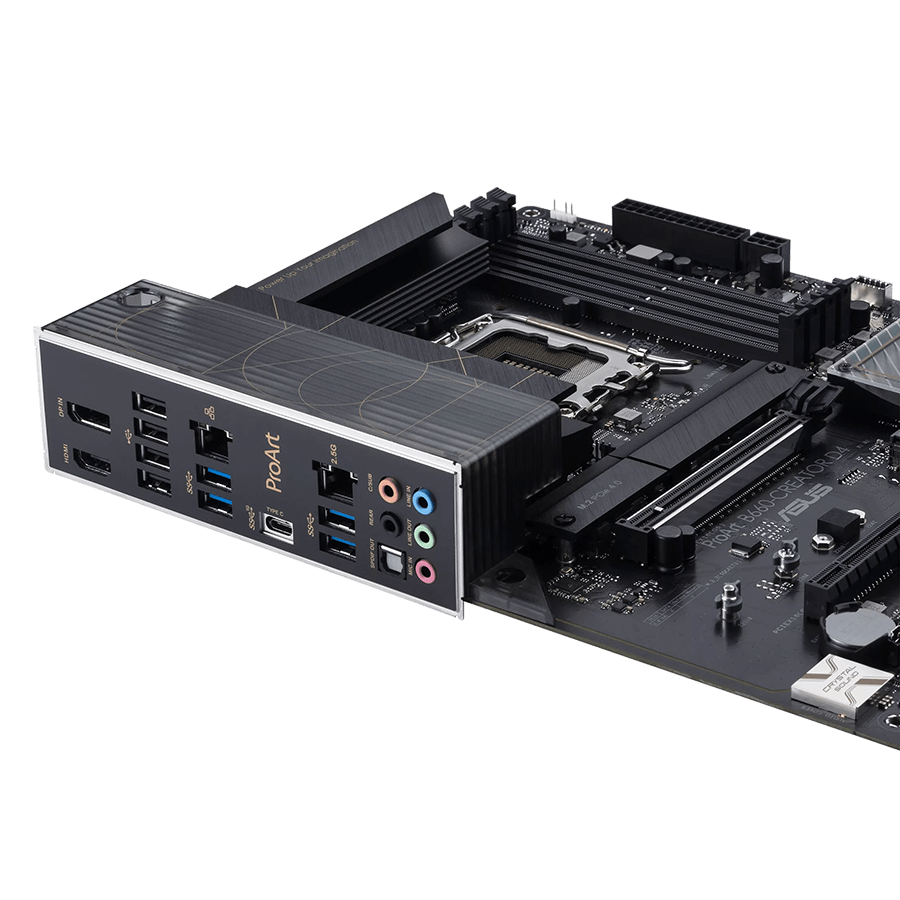

I/O & Connectivity
- USB 2.0
- 4 pcs
- USB 3.0
- No
- USB 3.1
- No
- Thunderbolt
- 1 PCS, به صورت کانکتور connectivity
- HDMI
- Yes
- DisplayPort
- Yes
- LAN
- Intel 1Gb Ethernet port, Realtek 2.5Gb Ethernet
- Wi-Fi
- No
- Bluetooth
- No
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Audio channels
- 7.1 کانال
- Digital audio
- OPTICAL S/PDIF
- USB 3.2
- 5 pcs
Power
- Power switch
- No
Other specs
- LED color
- No
- Configure
- دو کاناله
- PCI
- No
- Multi-GPU support
- No
- Intel Optane
- Yes
- D-Sub
- No
- DVI
- No
- 3.5 mm jack
- 5 pcs
- Debug display
- No
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Platform: Intel
CPU power circuit: 12+1 فاز
Chipset: Intel B660
LED color: No
