ASUS Motherboard ROG MAXIMUS Z890 EXTREME
ASUS ROG MAXIMUS Z890 EXTREME MOTHERBOARD chipset نسل پانزدهم Intel Z890 supports socket LGA-1851 supports PCI Express 5.0 supports Thunderbolt 4.0 supports connectivity Wi-Fi 7 with lighting header ARGB
Product image gallery
About this product
Details & use
ASUS ROG MAXIMUS Z890 EXTREME MOTHERBOARD chipset نسل پانزدهم Intel Z890 supports socket LGA-1851 supports PCI Express 5.0 supports Thunderbolt 4.0 supports connectivity Wi-Fi 7 with lighting header ARGB
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

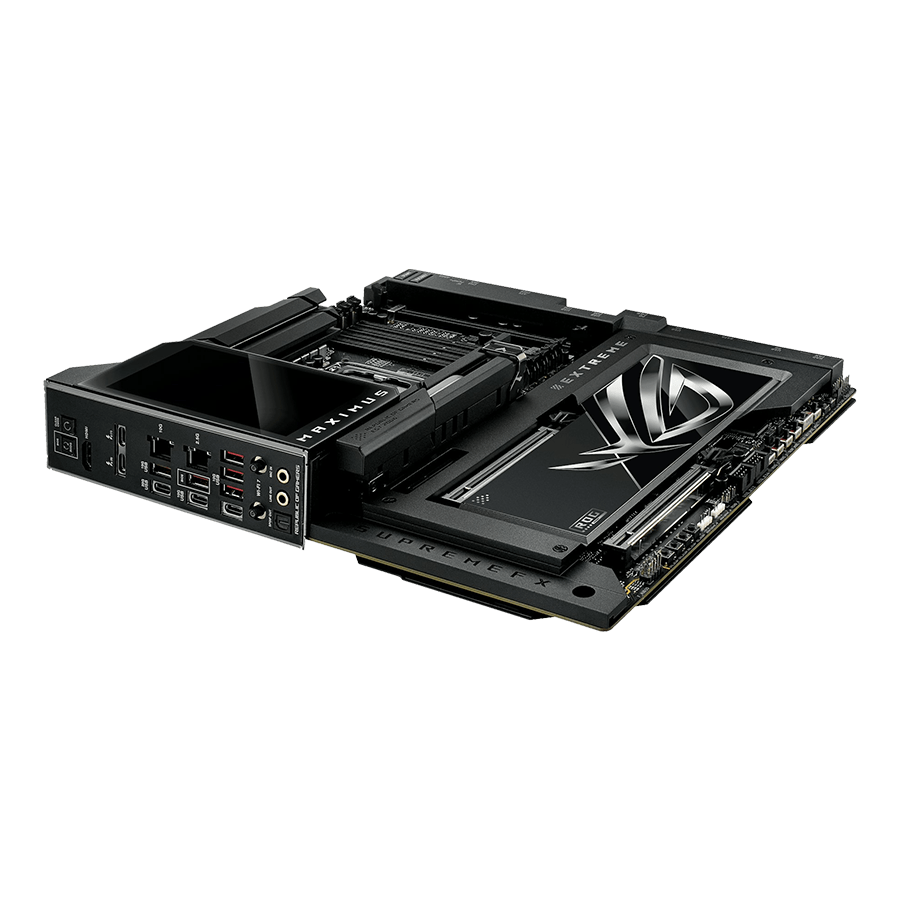

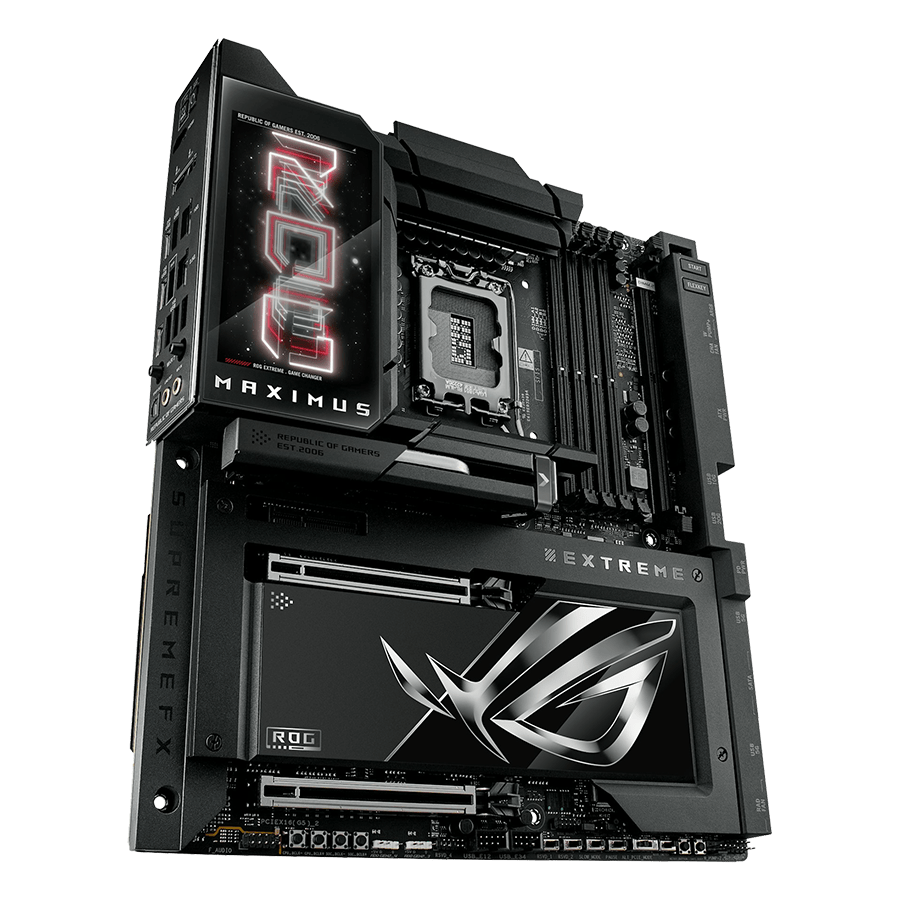

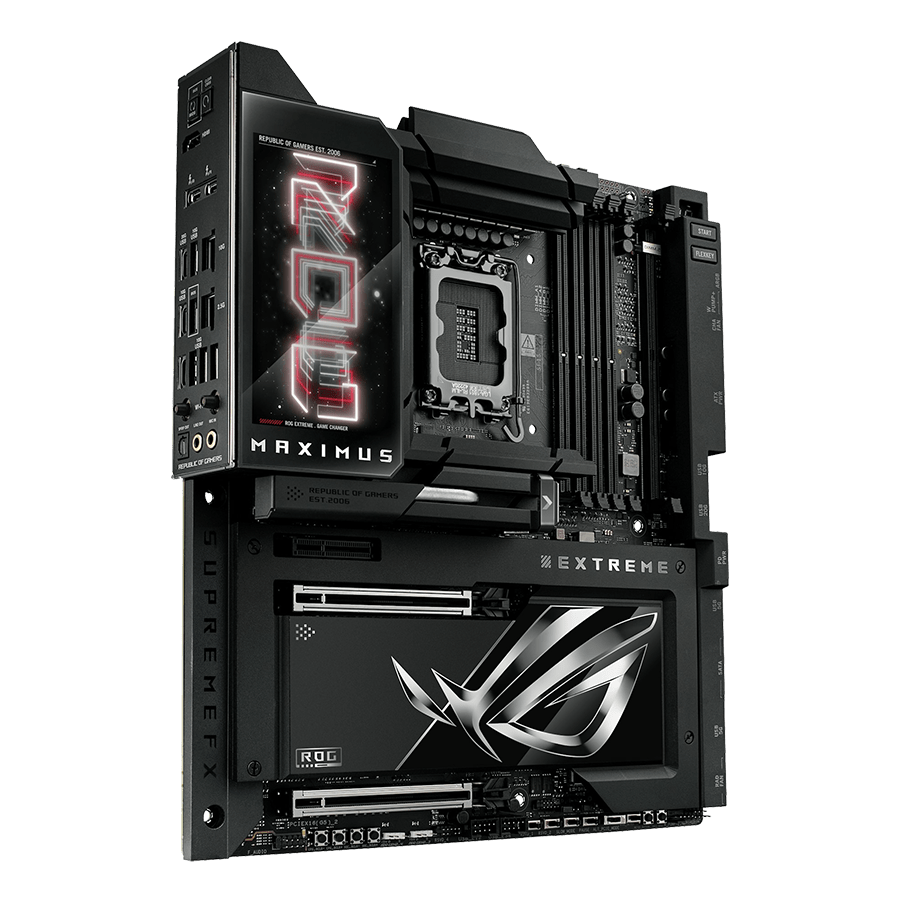

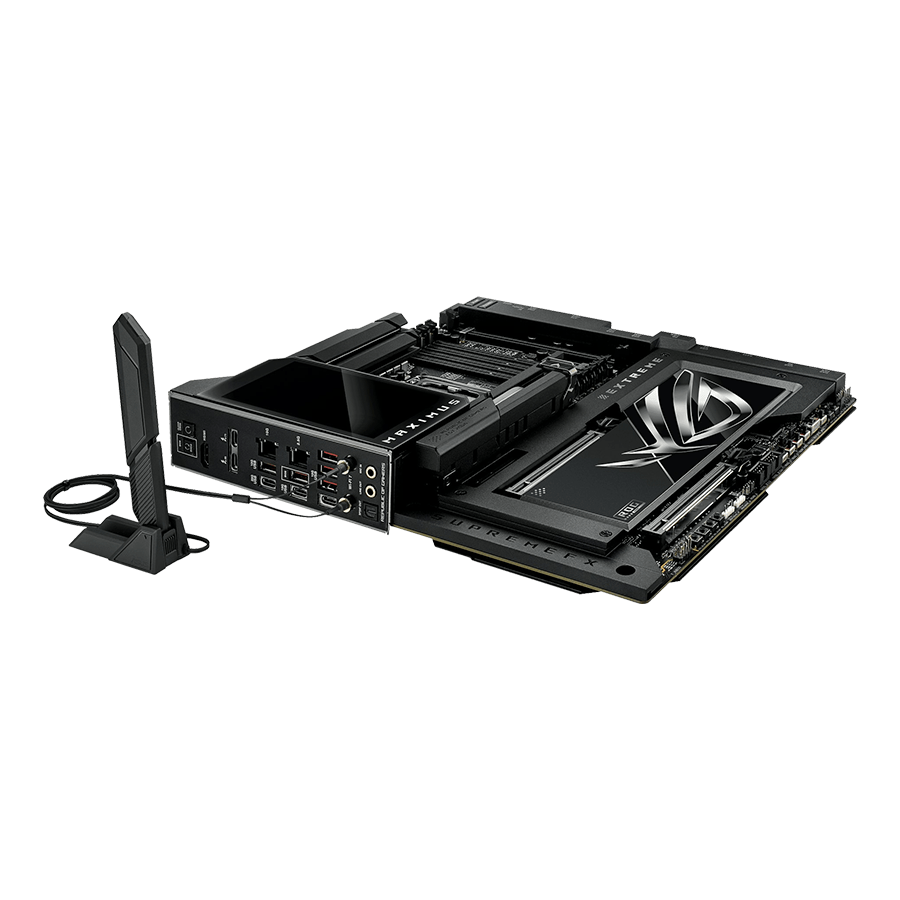

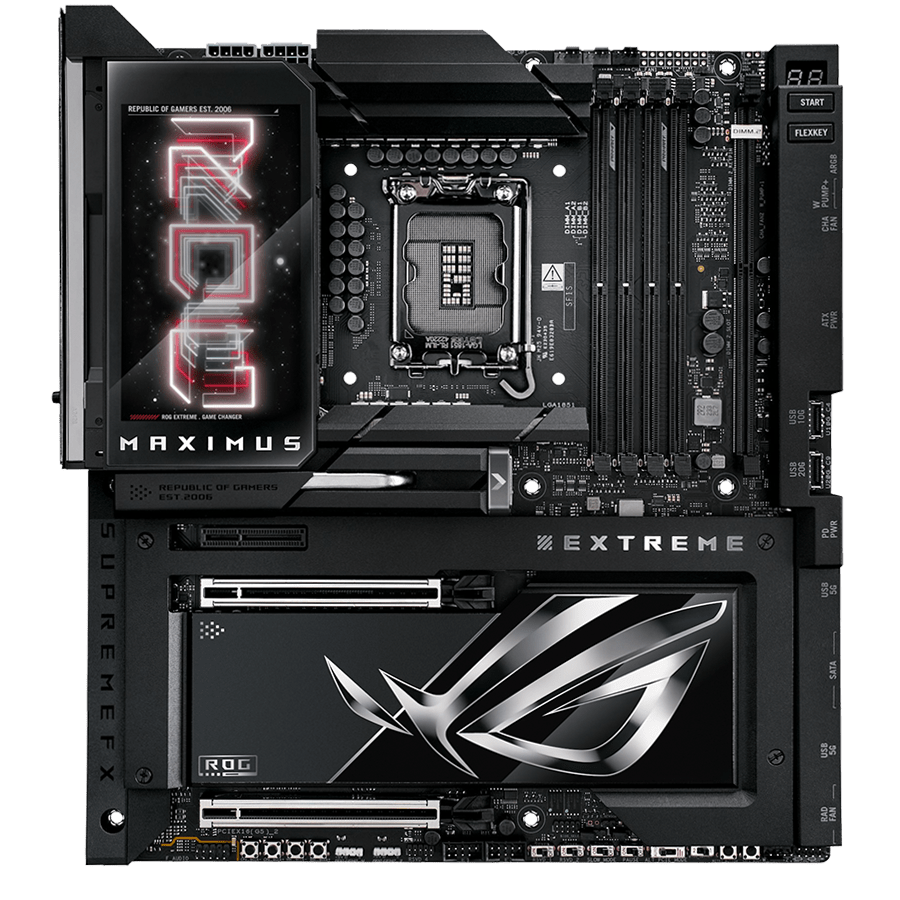

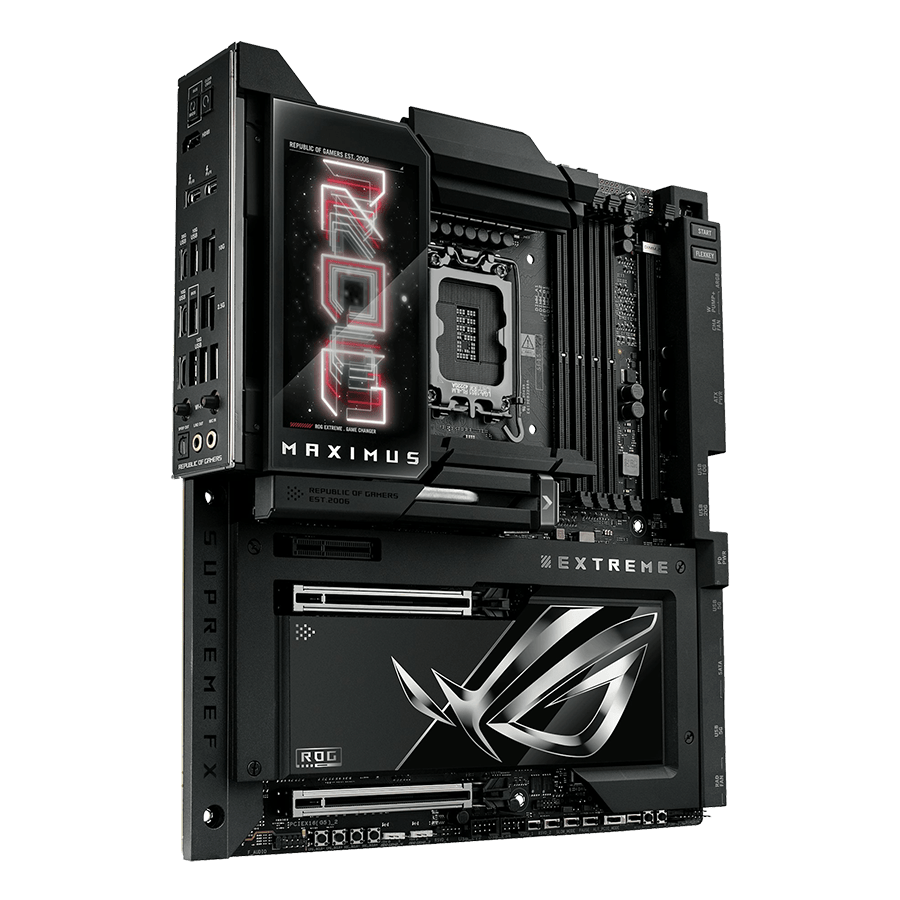

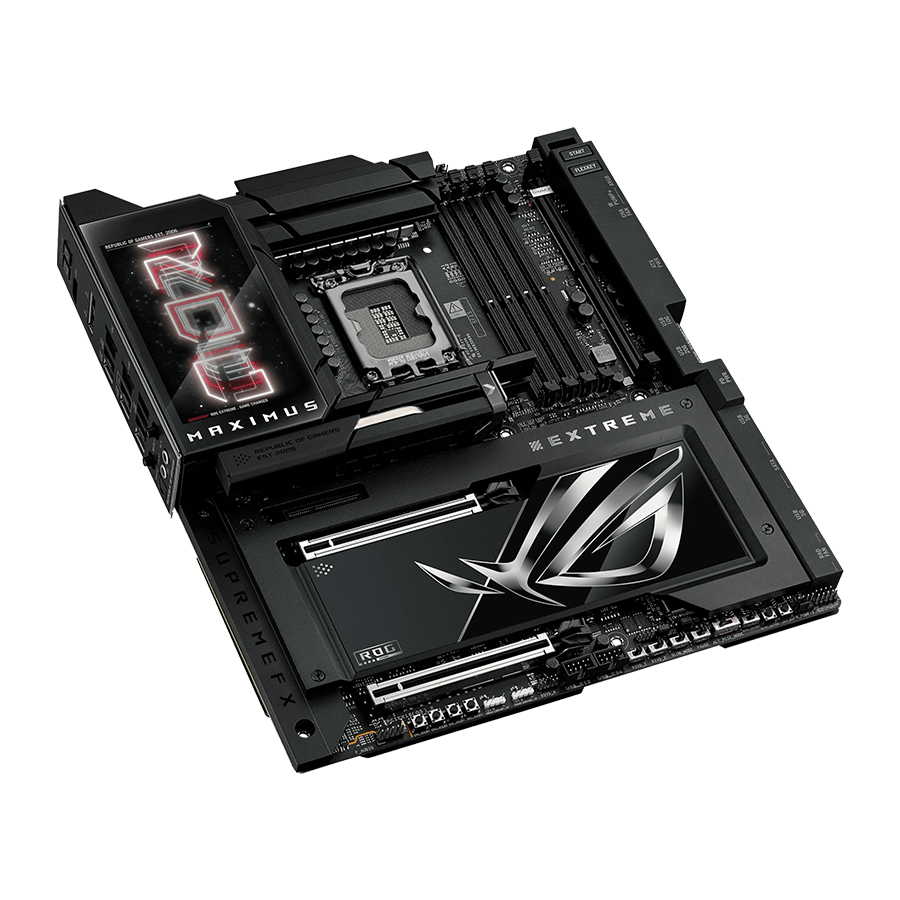

Photo 1/8
Specifications
Technical specs
Motherboard
- Platform
- Intel
- Chipset
- Intel Z890
- Series
- ROG MAXIMUS
- BIOS
- 2x 256MB Flash ROM, UEFI AMI BIOS
- Clear CMOS
- Yes
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
- Form factor
- E-ATX
Processor
- CPU generation
- نسل پانزدهم
- CPU socket
- LGA-1851
- Socket
- Intel Core Ultra Processors (Series 2)
- CPU power circuit
- 24+2+1+2 فاز
- CPU power connector
- دو pcs کانکتور 8 پین
Memory
- RAM capacity
- 256 GB
- RAM slots
- 4 pcs
- Memory type
- DDR5
- Memory
- up to 9200 MHz
Expansion Slots
- PCIe x16
- دو slot PCIe 5.0 x16
- PCIe x4
- 1 PCS
- PCIe x1
- No
Storage
- M.2
- سه slot PCIe 4.0 x16, سه slot PCIe 5.0 x16
- SATA III
- 4 pcs
- RAID
- RAID 0/1/5/10
I/O & Connectivity
- LAN
- Intel 2.5Gb Ethernet port, Marvell 10Gb Ethernet port
- USB 3.2
- 10 pcs
- USB 2.0
- 2 PCS
- USB 3.0
- No
- USB 3.1
- No
- HDMI
- Yes
- DisplayPort
- No
- Thunderbolt
- 2 pcs مشترک با USB Type-C
- Wi-Fi
- Intel Wi-Fi 7
- Communication protocols
- supports frequency 2.4/5/6 گیگاهرتز, 802.11be
- Bluetooth
- نسحه 5.4
- Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Audio channels
- 7.1 کانال
- Digital audio
- OPTICAL S/PDIF
Power
- Power switch
- Yes
Other specs
- Configure
- دو کاناله
- PCI
- No
- Multi-GPU support
- Supports AMD 2-Way CrossFireX Technology, Supports NVIDIA® 2-Way SLI® Technology
- Intel Optane
- No
- D-Sub
- No
- DVI
- No
- 3.5 mm jack
- 2 PCS
- Debug display
- Yes
- LED color
- ARGB
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Platform: Intel
Chipset: Intel Z890
Series: ROG MAXIMUS
CPU generation: نسل پانزدهم
