ASUS Motherboard TUF GAMING B660M-PLUS WIFI
ASUS TUF GAMING B660M-PLUS WIFI MOTHERBOARD 12th gen Intel chipset B660 supports socket LGA-1700 supports PCI Express 5.0 supports connectivity Wi-Fi 6 with lighting header ARGB
Product image gallery
About this product
Details & use
ASUS TUF GAMING B660M-PLUS WIFI MOTHERBOARD 12th gen Intel chipset B660 supports socket LGA-1700 supports PCI Express 5.0 supports connectivity Wi-Fi 6 with lighting header ARGB
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/8
Specifications
Technical specs
Motherboard
- Platform
- Intel
- Chipset
- Intel B660
- Clear CMOS
- Yes
- BIOS
- 128MB Flash ROM, UEFI AMI BIOS
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
- Form factor
- m-ATX
- Series
- TUF Gaming
Processor
- CPU socket
- LGA-1700
- Socket
- Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
- CPU generation
- 12th gen
- CPU power circuit
- 10+1 فاز
- CPU power connector
- یک pcs 4 پین, یک pcs 8 پین
Memory
- Memory type
- DDR5
- RAM slots
- 4 pcs
- Memory
- up to 6000 MHz
- RAM capacity
- 128 GB
Expansion Slots
- PCIe x1
- 1 PCS, PCIe 4.0
- PCIe x16
- یک slot PCIe 3.0 x16, یک slot PCIe 5.0 x16
- PCIe x4
- No
Storage
- M.2
- دو pcs PCIe 4.0
- SATA III
- 4 pcs

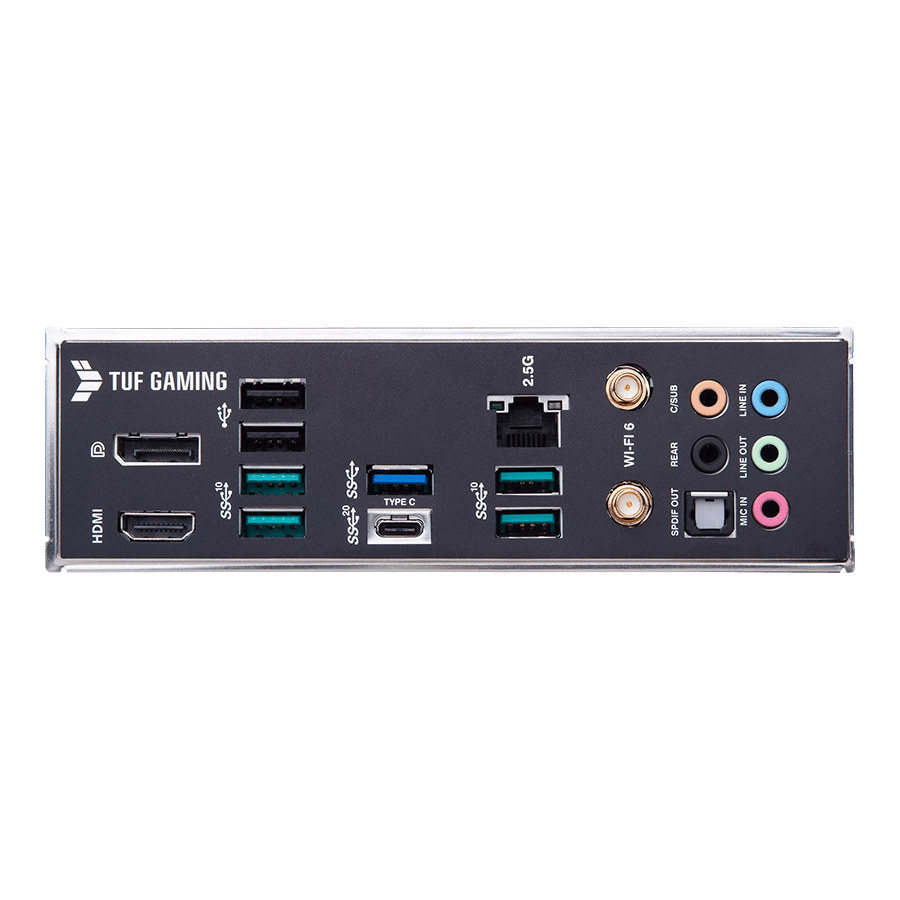

I/O & Connectivity
- USB 2.0
- 2 PCS
- USB 3.2
- 6 pcs
- USB 3.0
- No
- USB 3.1
- No
- HDMI
- Yes
- DisplayPort
- Yes
- Thunderbolt
- 1 PCS, به صورت کانکتور connectivity
- LAN
- Intel 2.5Gb Ethernet port
- Wi-Fi
- Intel Wi-Fi 6
- Communication protocols
- 802.11a/b/g/n/ac/ax, supports frequency 2.4/5 گیگاهرتز
- Bluetooth
- نسخه 5.2
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Audio channels
- 7.1 کانال
- Digital audio
- OPTICAL S/PDIF
Power
- Power switch
- No
Other specs
- Configure
- دو کاناله
- PCI
- No
- Multi-GPU support
- No
- Intel Optane
- Yes
- D-Sub
- No
- DVI
- No
- 3.5 mm jack
- 5 pcs
- Debug display
- No
- LED color
- ARGB
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Platform: Intel
Chipset: Intel B660
Memory type: DDR5
CPU socket: LGA-1700
