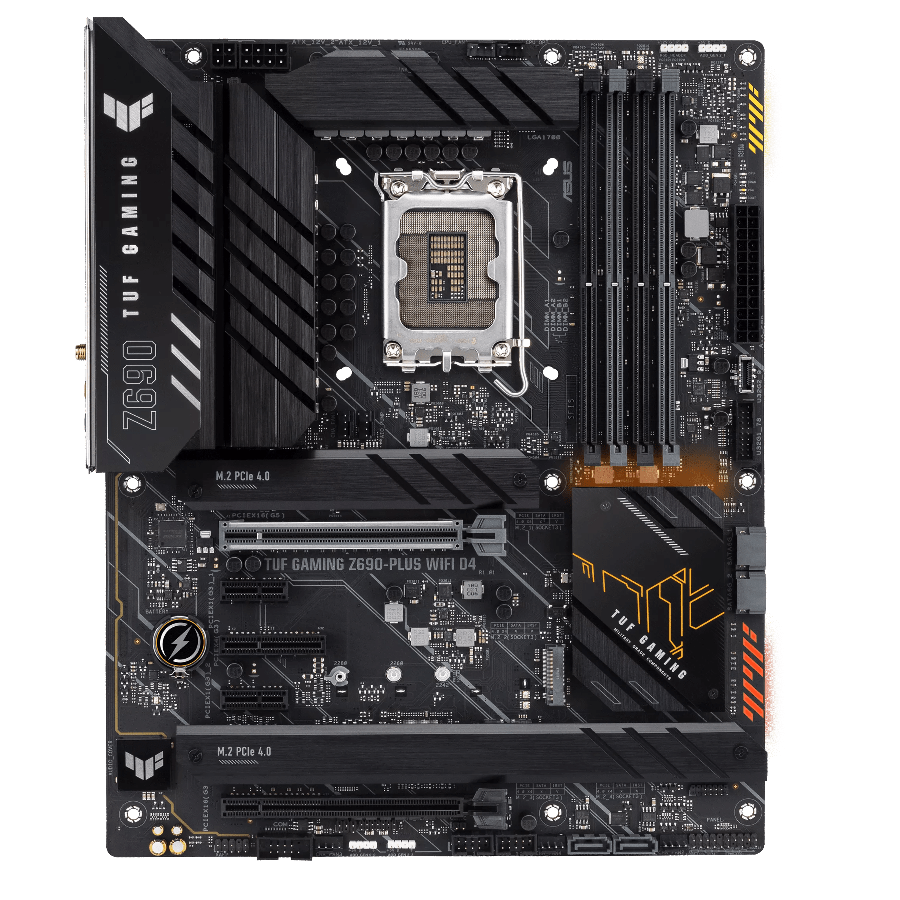

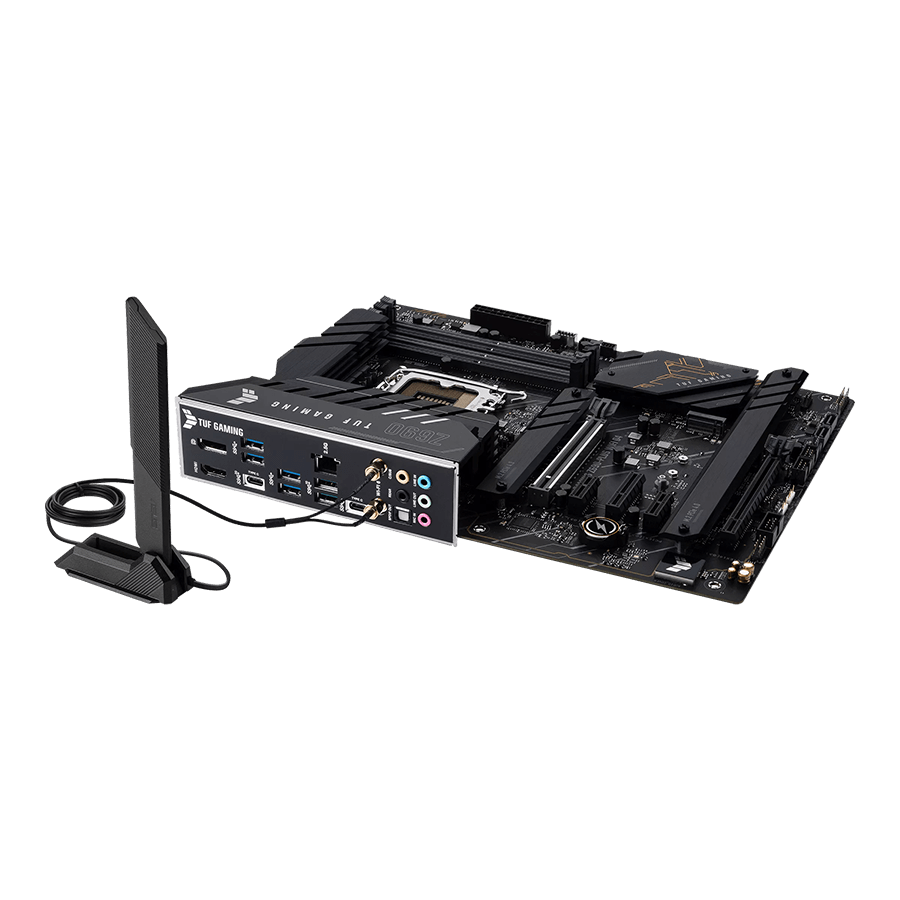

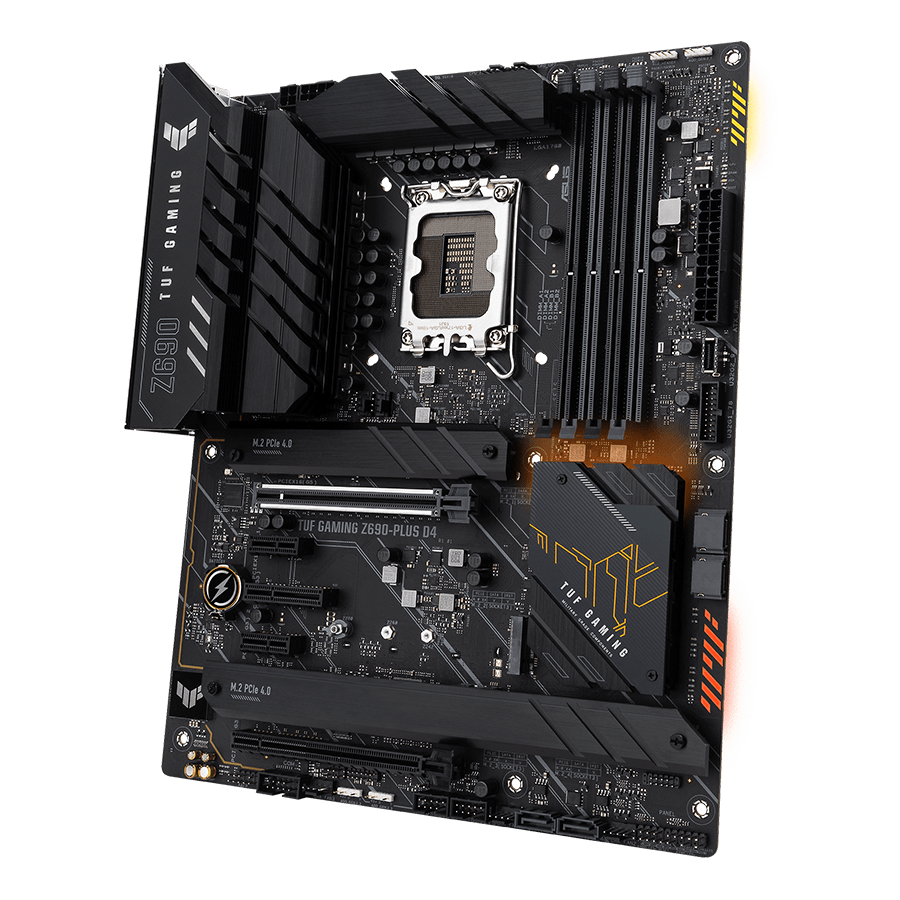

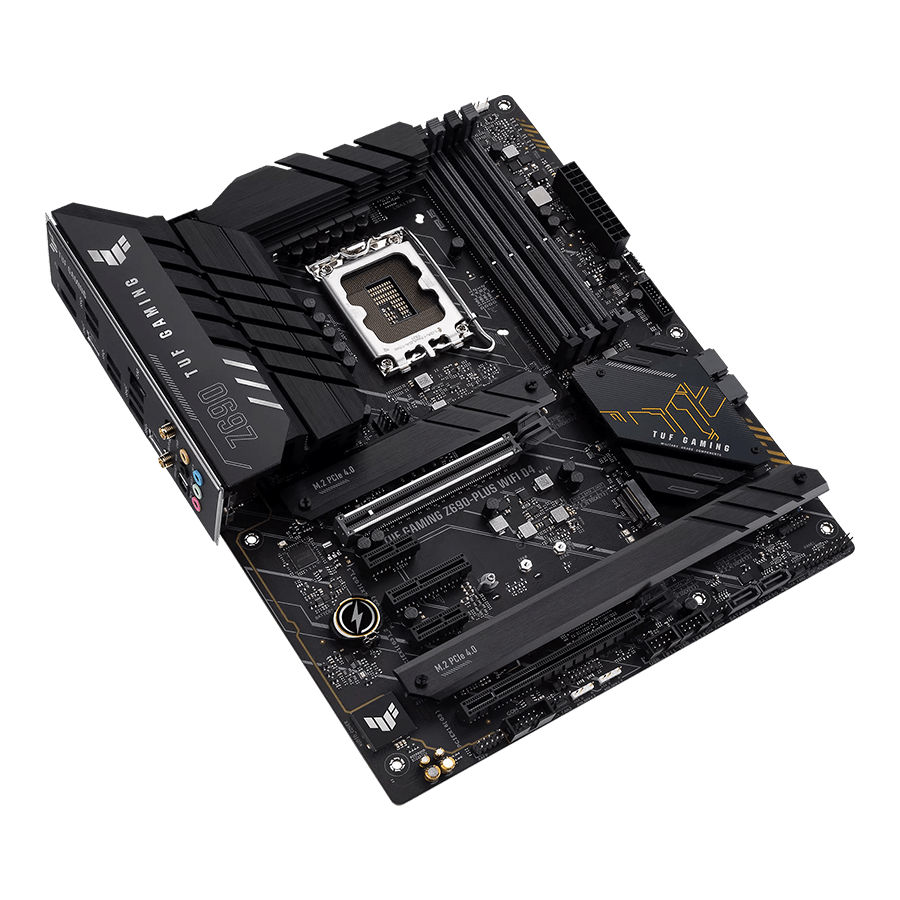

ASUS Motherboard TUF GAMING Z690-PLUS WIFI D4
ASUS TUF GAMING Z690-PLUS WIFI D4 MOTHERBOARD 12th gen Intel chipset Z690 supports socket LGA-1700 supports PCI Express 5.0 supports RAM DDR4 supports connectivity Wi-Fi 6 with lighting header ARGB
Product image gallery
About this product
Details & use
ASUS TUF GAMING Z690-PLUS WIFI D4 MOTHERBOARD 12th gen Intel chipset Z690 supports socket LGA-1700 supports PCI Express 5.0 supports RAM DDR4 supports connectivity Wi-Fi 6 with lighting header ARGB
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/5
Specifications
Technical specs
Motherboard
- Form factor
- ATX
- Chipset
- Intel Z690
- Platform
- Intel
- Clear CMOS
- No
- BIOS
- 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
- Series
- TUF Gaming
Processor
- CPU power connector
- یک pcs 8 پین, یک pcs 4 پین
- CPU power circuit
- 14+1 فاز
- CPU generation
- 12th gen, 13th gen
- Socket
- Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
- CPU socket
- LGA-1700
Memory
- Memory
- up to 5333 MHz
- RAM capacity
- 128 GB
- Memory type
- DDR4
- RAM slots
- 4 pcs
Expansion Slots
- PCIe x1
- PCIe 3.0, 2 PCS
- PCIe x4
- PCIe 3.0, 1 PCS
- PCIe x16
- یک slot PCIe 5.0 x16, یک slot PCIe 3.0 x16
Storage
- RAID
- RAID 0/1/5/10
- SATA III
- 4 pcs
- M.2
- چهار pcs PCIe 4.0

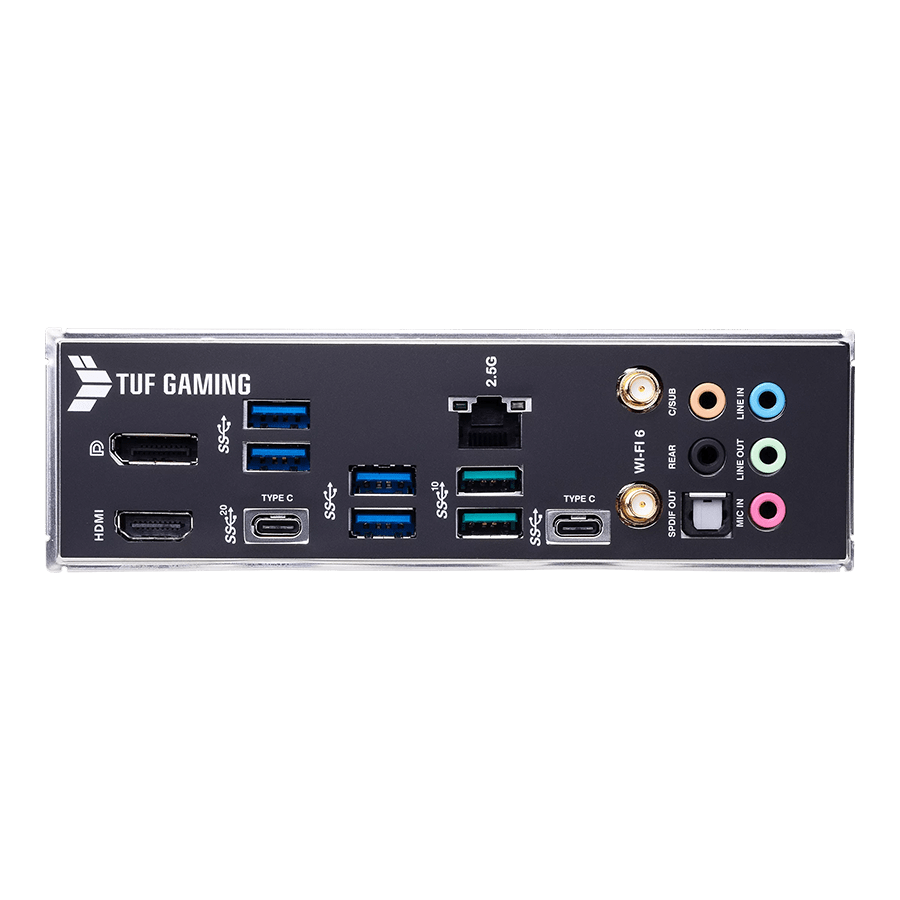

I/O & Connectivity
- Audio channels
- 7.1 کانال
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Bluetooth
- نسخه 5.2
- Communication protocols
- supports frequency 2.4/5 گیگاهرتز, 802.11a/b/g/n/ac/ax
- Wi-Fi
- Intel Wi-Fi 6
- LAN
- Intel 2.5Gb Ethernet port
- Thunderbolt
- 1 PCS, به صورت کانکتور connectivity
- DisplayPort
- Yes
- HDMI
- Yes
- USB 3.2
- 8 pcs
- USB 3.1
- No
- USB 3.0
- No
- USB 2.0
- به صورت کانکتور connectivity به کیس, 2 PCS
- Digital audio
- OPTICAL S/PDIF
Power
- Power switch
- No
Other specs
- 3.5 mm jack
- 5 pcs
- DVI
- No
- D-Sub
- No
- Intel Optane
- Yes
- PCI
- No
- Configure
- دو کاناله
- Debug display
- No
- LED color
- ARGB
