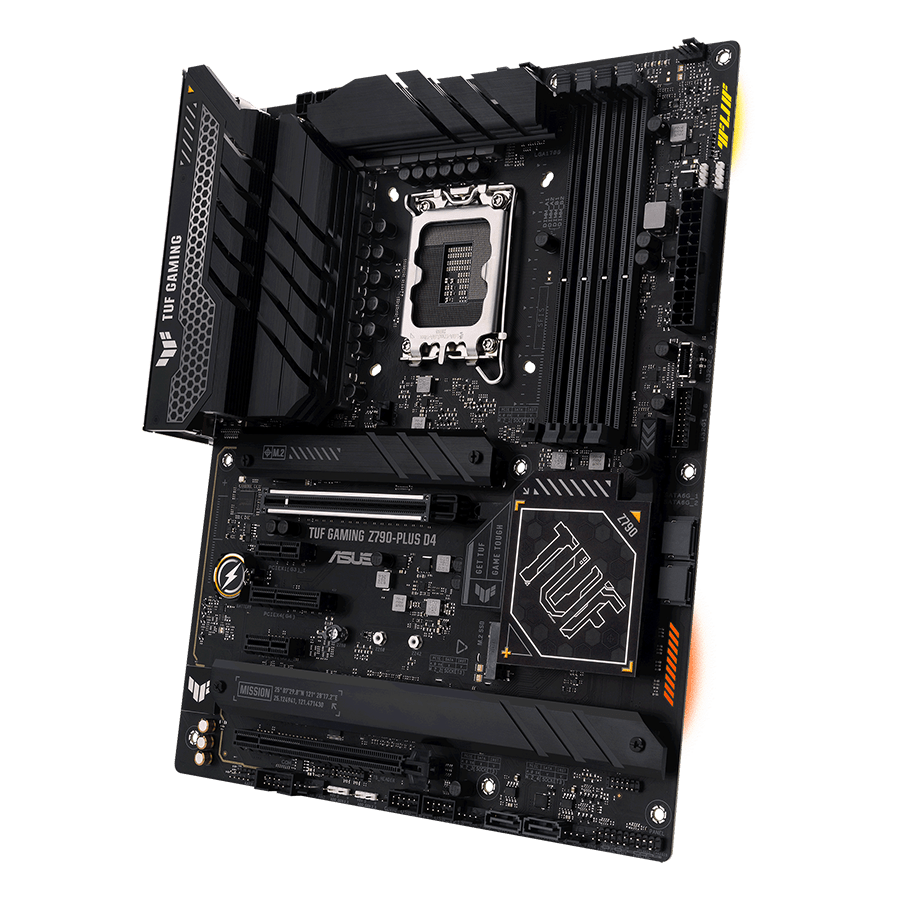

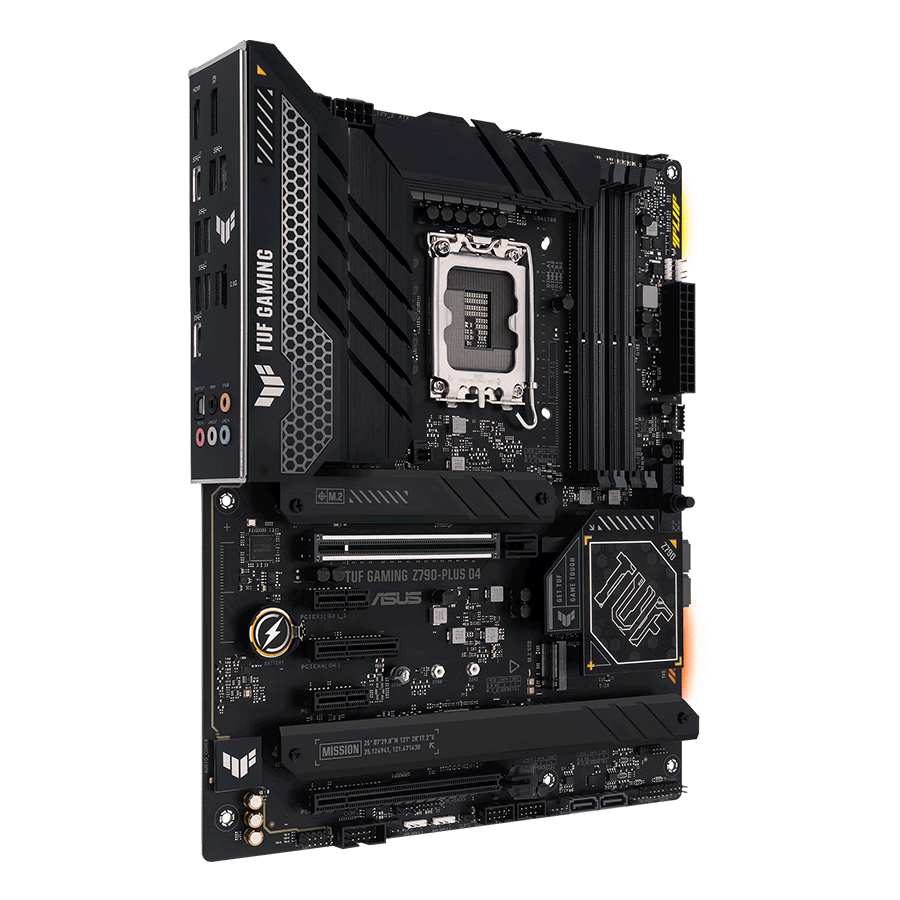

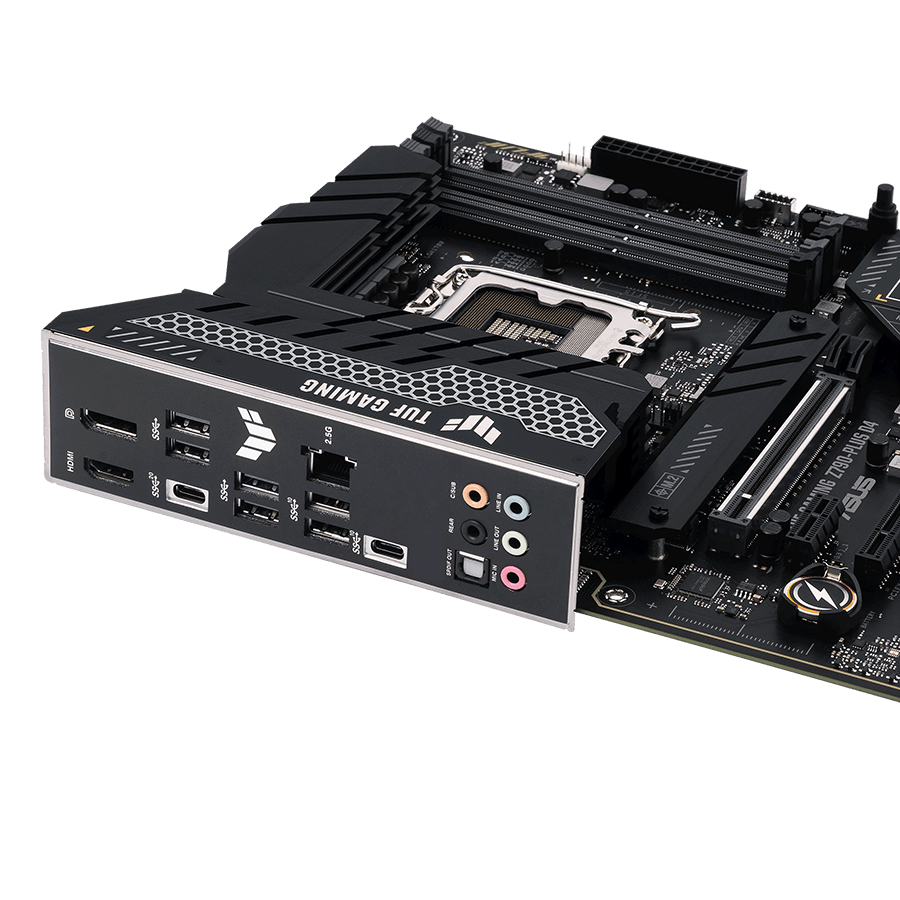

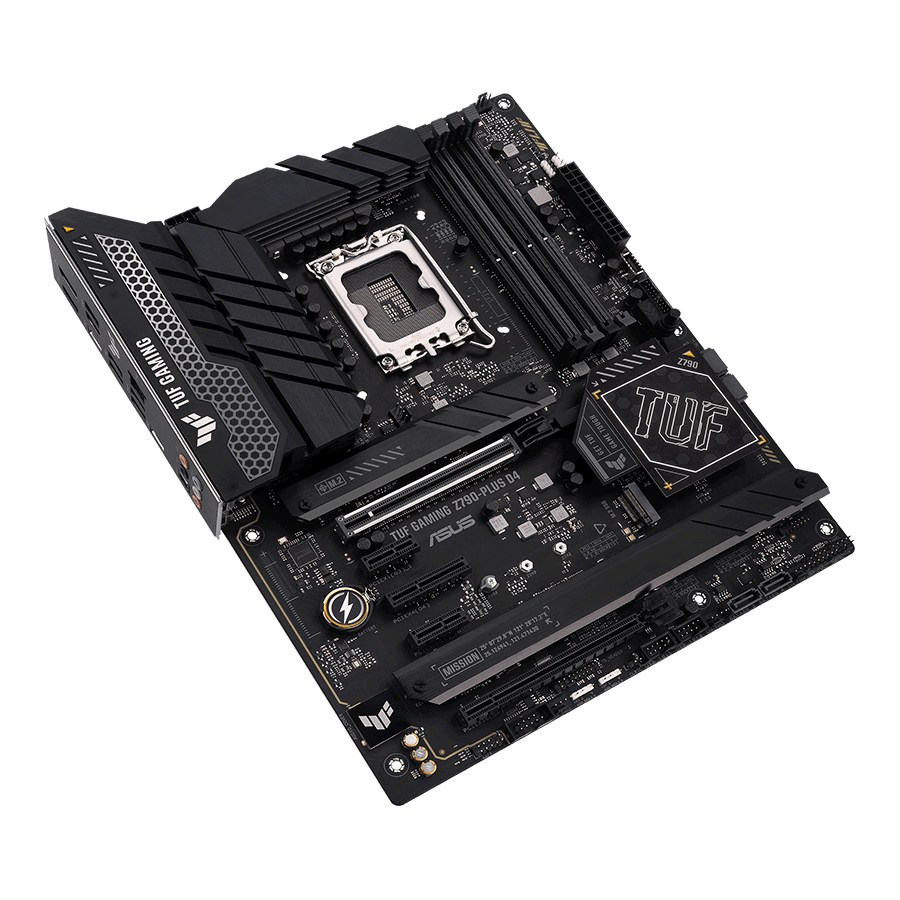

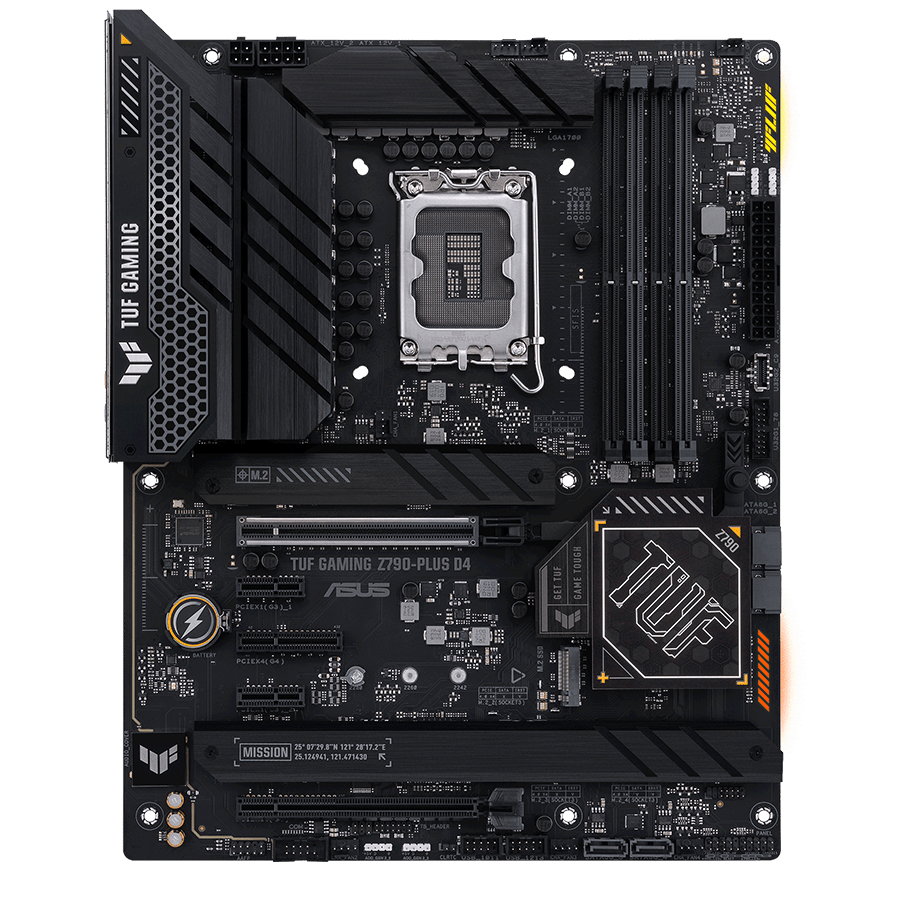

ASUS Motherboard TUF GAMING Z790-PLUS D4
ASUS TUF GAMING Z790-PLUS D4 MOTHERBOARD 13th gen Intel chipset Z790 supports socket LGA-1700 supports PCI Express 5.0 supports Thunderbolt 4.0 with lighting header ARGB
Product image gallery
About this product
Details & use
ASUS TUF GAMING Z790-PLUS D4 MOTHERBOARD 13th gen Intel chipset Z790 supports socket LGA-1700 supports PCI Express 5.0 supports Thunderbolt 4.0 with lighting header ARGB
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/5
Specifications
Technical specs
Motherboard
- Platform
- Intel
- Chipset
- Intel Z790
- Form factor
- ATX
- Clear CMOS
- Yes
- BIOS
- 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
- Series
- TUF Gaming
Processor
- CPU socket
- LGA-1700
- Socket
- Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
- CPU generation
- 13th gen, 12th gen
- CPU power circuit
- 16+1 فاز
- CPU power connector
- دو pcs کانکتور 8 پین
Memory
- RAM slots
- 4 pcs
- Memory type
- DDR4
- RAM capacity
- 128 GB
- Memory
- supports memory RAM DDR4 با up to frequency 5333 MHz
Expansion Slots
- PCIe x16
- یک slot PCIe 4.0 x16, یک slot PCIe 5.0 x16
- PCIe x4
- 1 PCS, PCIe 4.0
- PCIe x1
- 2 PCS, PCIe 3.0
Storage
- M.2
- چهار pcs PCIe 4.0
- SATA III
- 4 pcs
- RAID
- RAID 0/1/5/10
I/O & Connectivity
- USB 2.0
- 2 PCS
- USB 3.0
- No
- USB 3.1
- No
- USB 3.2
- 8 pcs
- HDMI
- Yes
- DisplayPort
- Yes
- Thunderbolt
- به صورت کانکتور connectivity
- LAN
- Intel 2.5Gb Ethernet port
- Audio
- Realtek ALC S1220A 7.1 Surround Sound High Definition Audio CODEC
- Audio channels
- 7.1 کانال
- Digital audio
- OPTICAL S/PDIF
Power
- Power switch
- No
Other specs
- Configure
- دو کاناله
- PCI
- No
- Multi-GPU support
- No
- Intel Optane
- No
- D-Sub
- No
- DVI
- No
- 3.5 mm jack
- 5 pcs
- Debug display
- No
- LED color
- ARGB
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Platform: Intel
Chipset: Intel Z790
Form factor: ATX
CPU socket: LGA-1700
