SilverStone

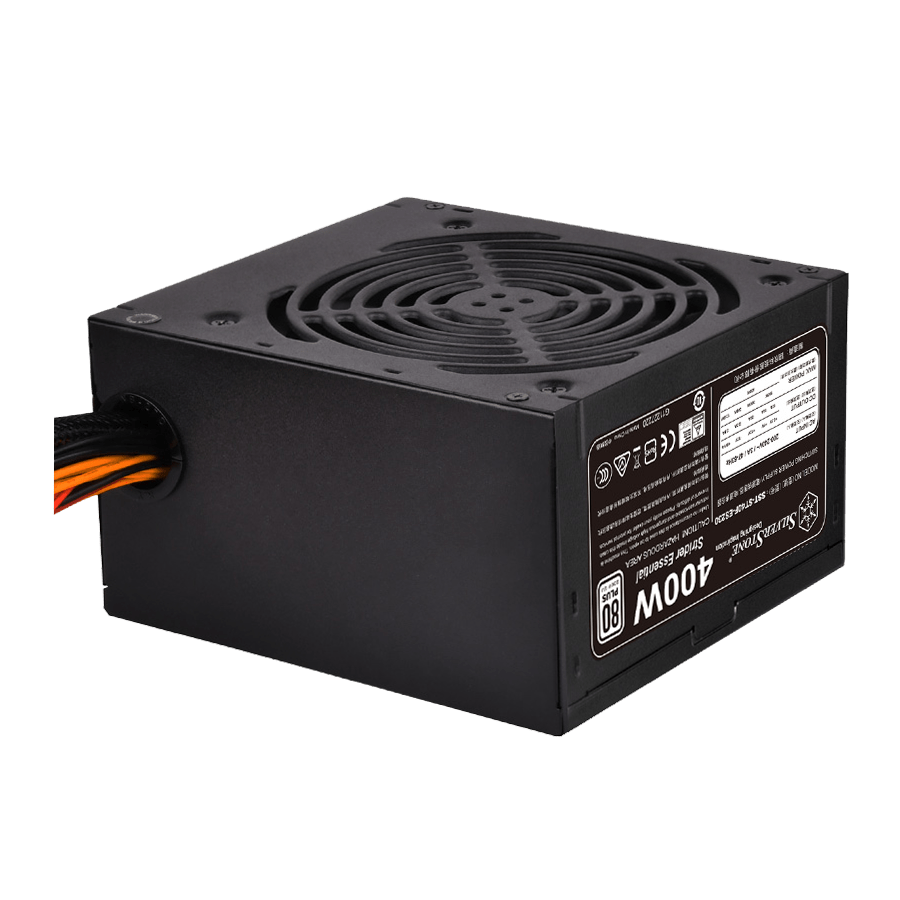

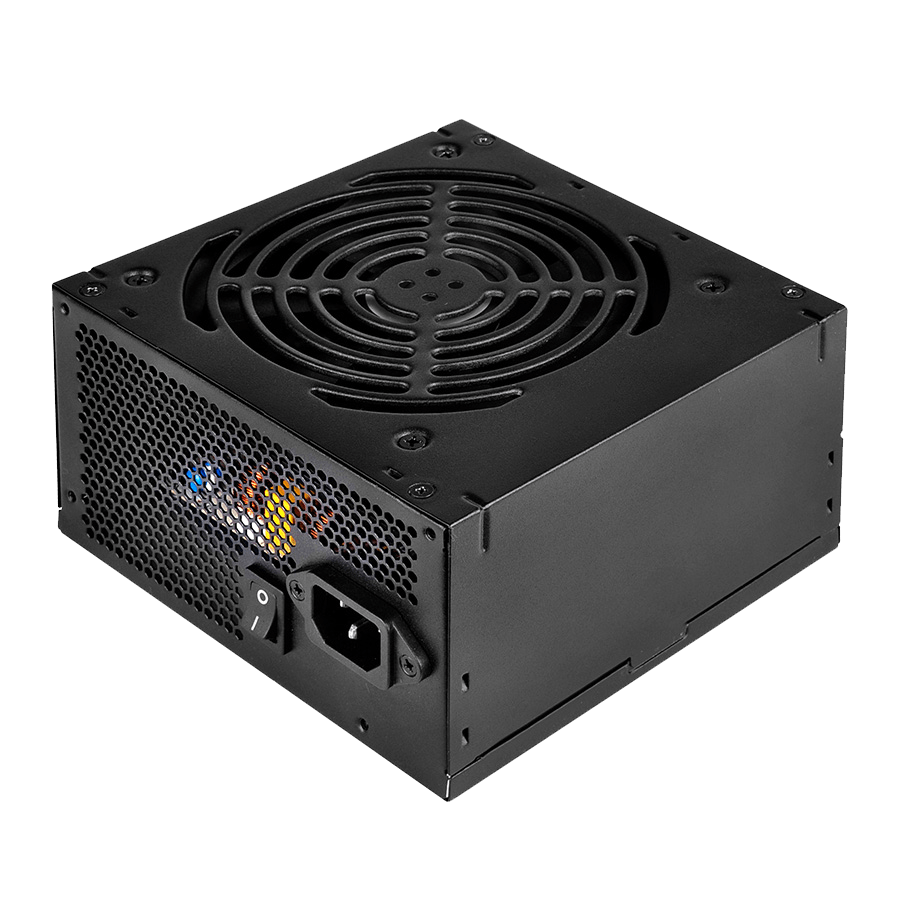

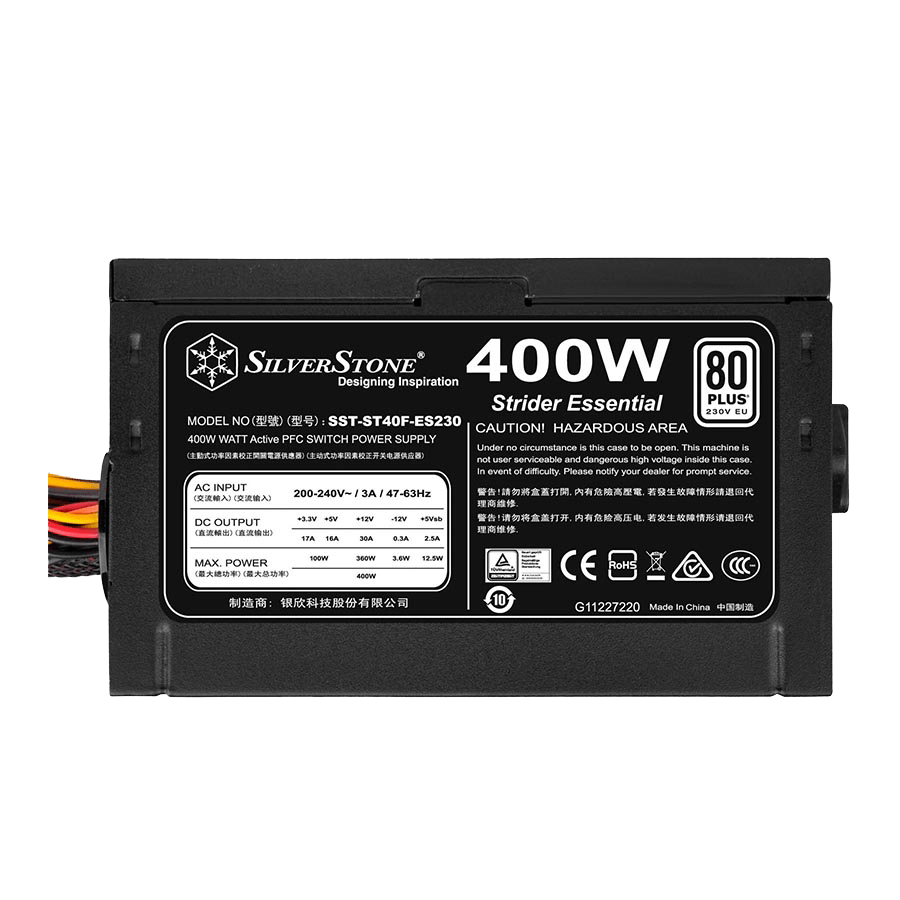

SilverStone ST40F-ES230
￭ High efficiency with 80 PLUS certification ￭ 24/7 continuous power output with 40℃ operating temperature ￭ Class-leading single +12V rail ￭ Active PFC Circuitry ￭ PCI-E 8pin and PCI-E 6pin connector support ￭ Silent running 120mm fan with 18dBA
Product image gallery
About this product
Details & use
￭ High efficiency with 80 PLUS certification ￭ 24/7 continuous power output with 40℃ operating temperature ￭ Class-leading single +12V rail ￭ Active PFC Circuitry ￭ PCI-E 8pin and PCI-E 6pin connector support ￭ Silent running 120mm fan with 18dBA
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/8
Specifications
Technical specs
Performance & Compatibility
- Input Frequency Range
- 47 تا 63 هرتز
Design & Dimensions

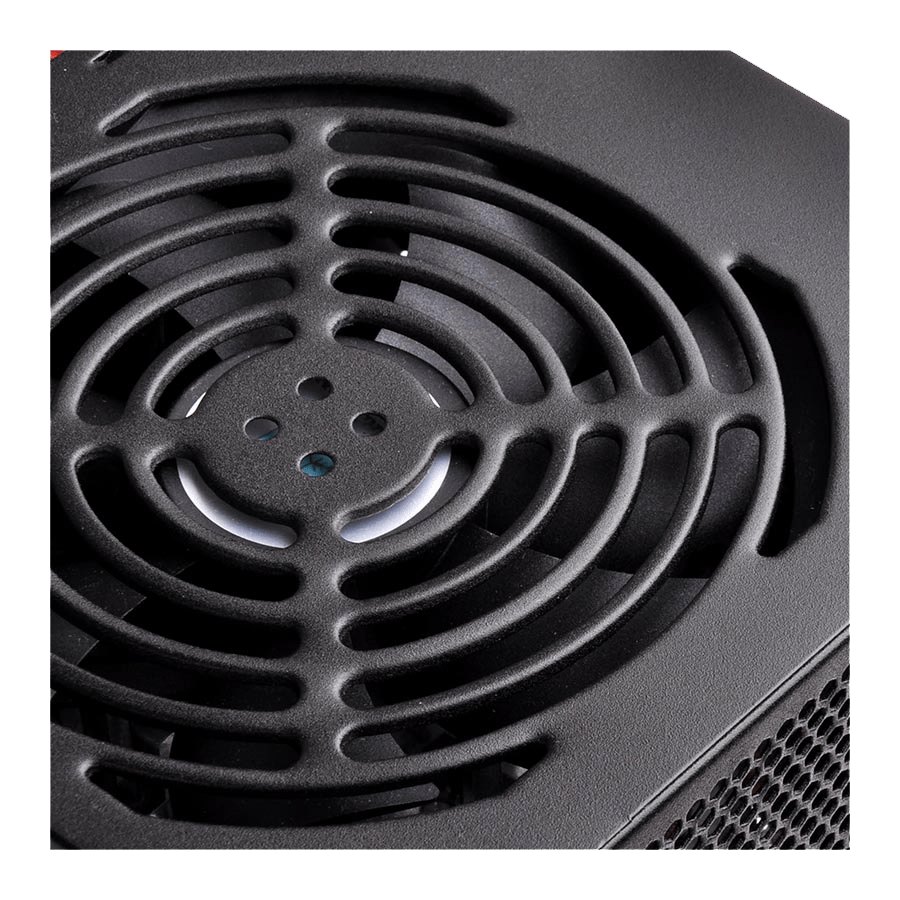

- Cooling system
- Single 120mm silent fan
- Dimensions
- 140×86×150 mm
- Weight
- 1.26 kg
- Form factor
- ATX
Other specs
- 12V
- 0.3 آمپر
- Combined 12V
- 30 آمپر
- Color
- Black (lead-free paint)
- 15-pin SATA
- 4 pcs
- Efficiency
- 82% ~ 85% at 20% ~ 100% loading
- 8-pin PCIe
- 2 pcs
- Operating temperature
- 0 تا 40 ° سانتی گراد
- 3.3V
- 17 آمپر
- Cabling
- connectivity دائم
- Wattage
- 400 W
- Input voltage
- 180 ~ 264 Vrms
- Active PFC
- Yes
- 8-pin EPS
- 1 pcs
- Protection
- Over Power Protection Over Voltage Protection Short Circuit Protection
- MTBF
- 100,000 hours
- FDD
- 1 PCS
- 24-pin connector
- 1 pcs
- Certification
- 80 PLUS
- 4-pin Molex
- 3 pcs
- 5V
- 16 آمپر
- Noise level
- 18 dBA minimum
- LED color
- No
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Cooling system: Single 120mm silent fan
12V: 0.3 آمپر
Dimensions: 150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D)
Combined 12V: 30 آمپر
