ASUS ROG STRIX B560-F GAMING WIFI
Intel ® B560 LGA 1200 ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Intel ® 2.5 Gb Ethernet, three M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C ® , SATA and Aura Sync RGB lighting
Product image gallery
About this product
Details & use
Intel ® B560 LGA 1200 ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Intel ® 2.5 Gb Ethernet, three M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C ® , SATA and Aura Sync RGB lighting
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.

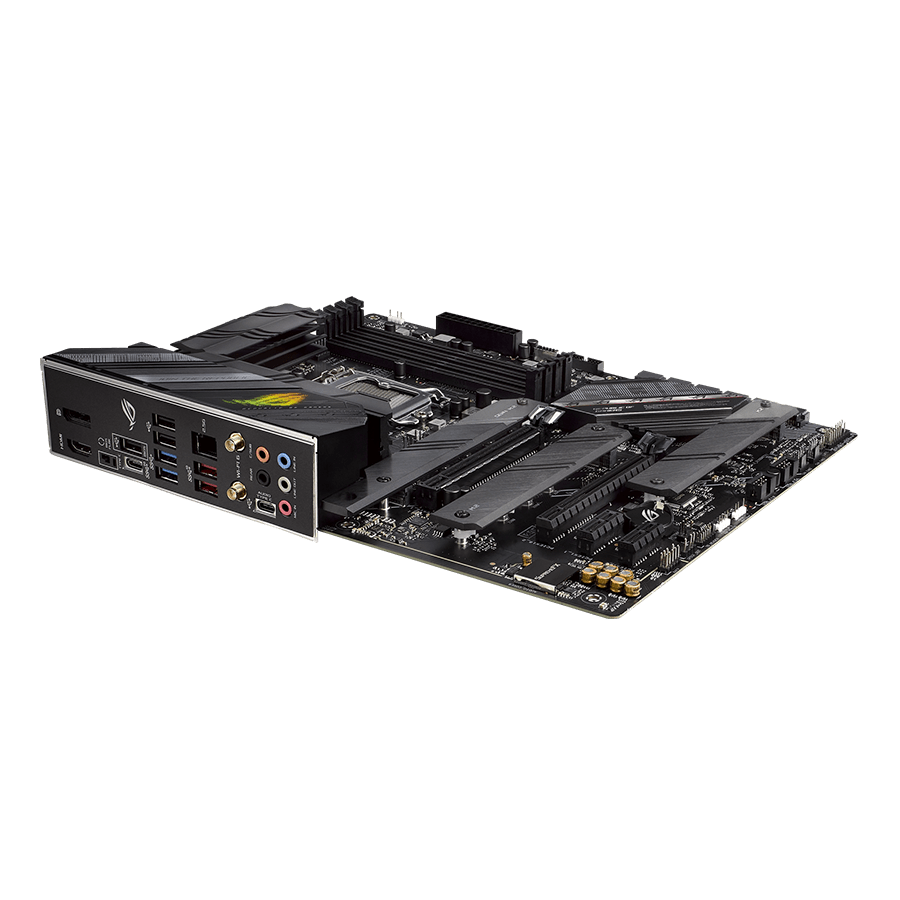

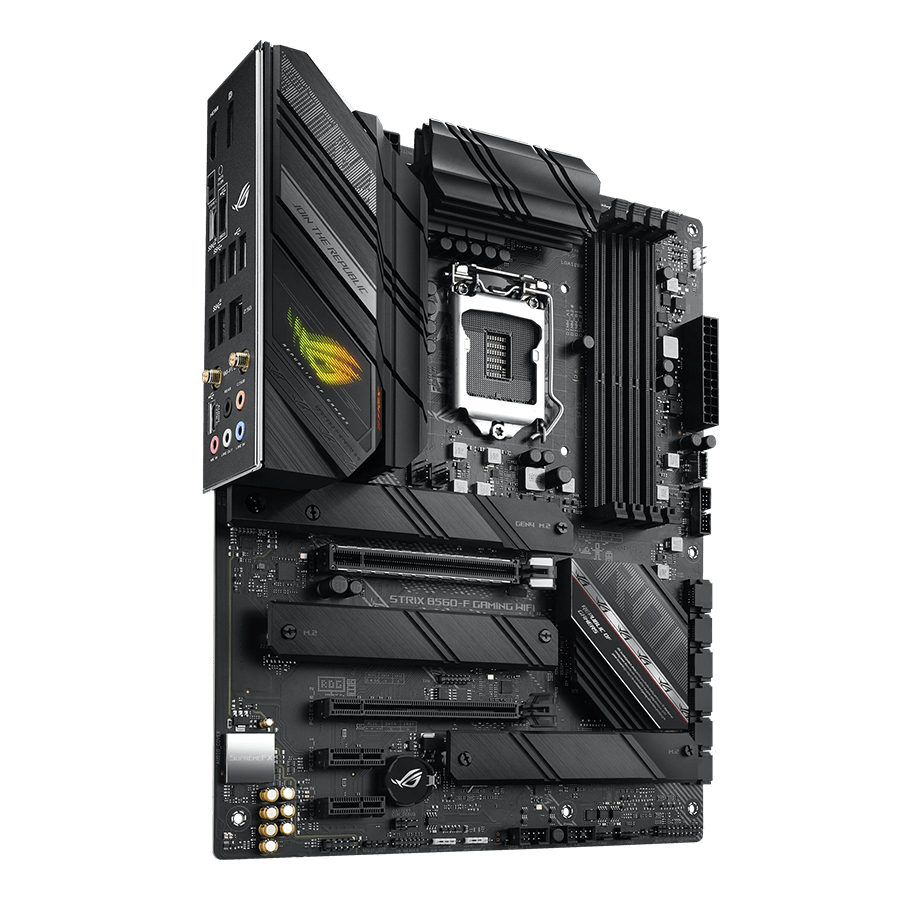

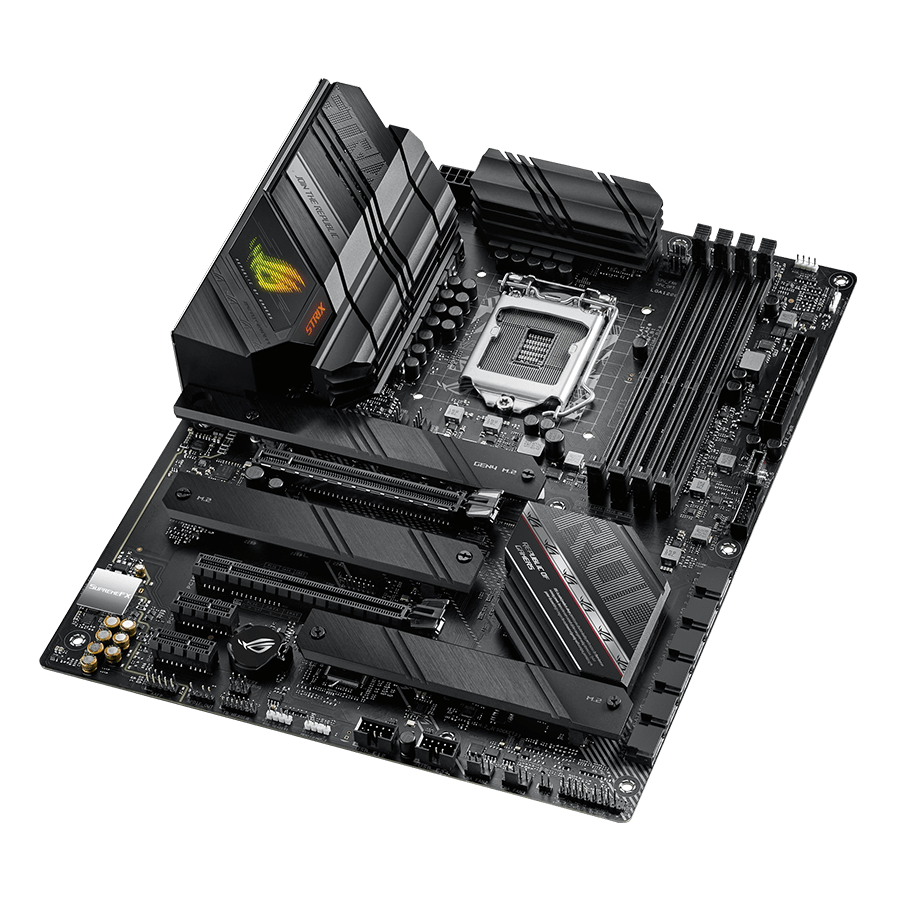

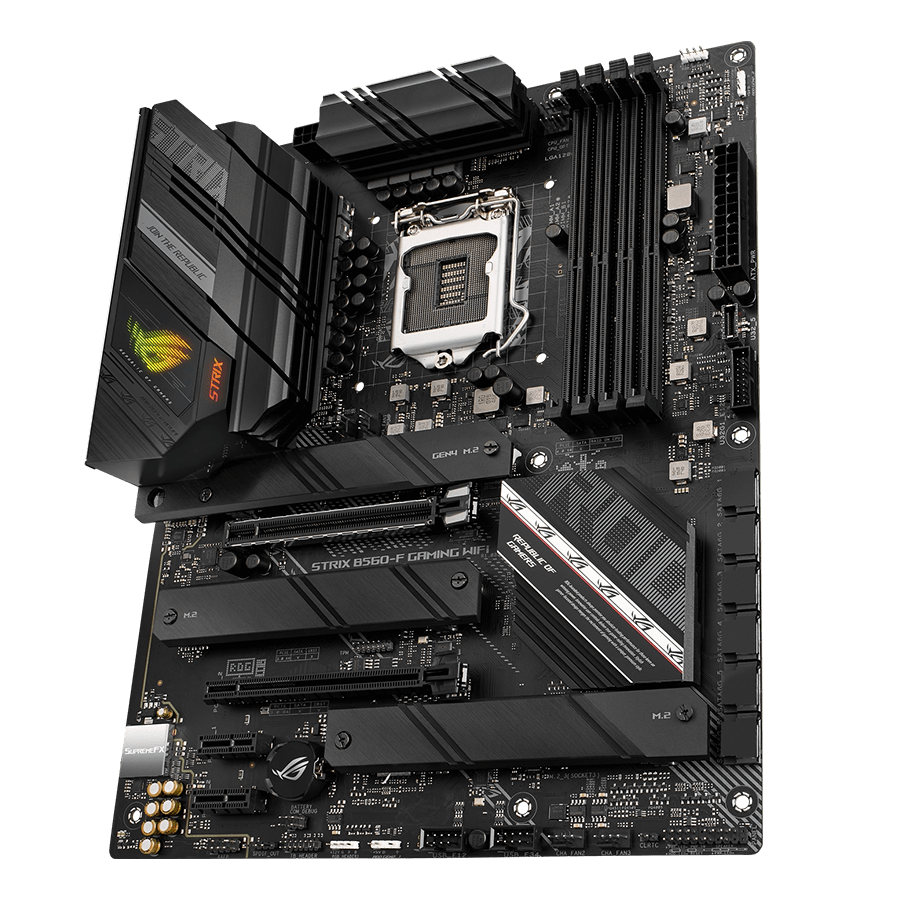

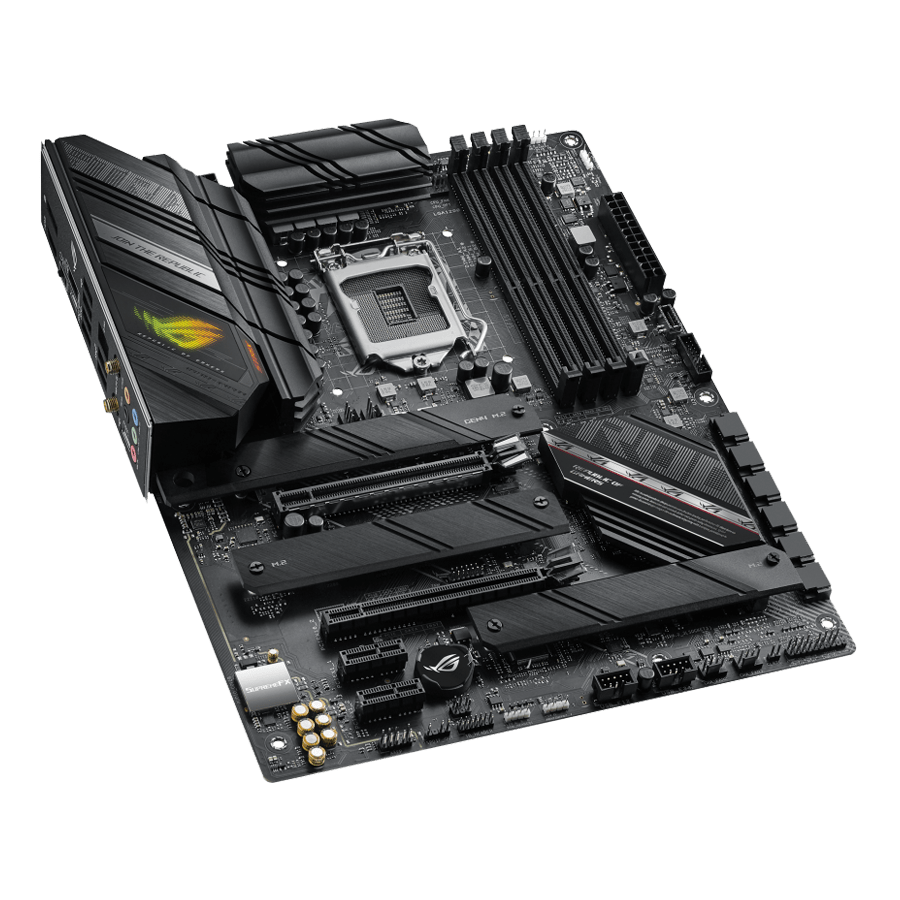

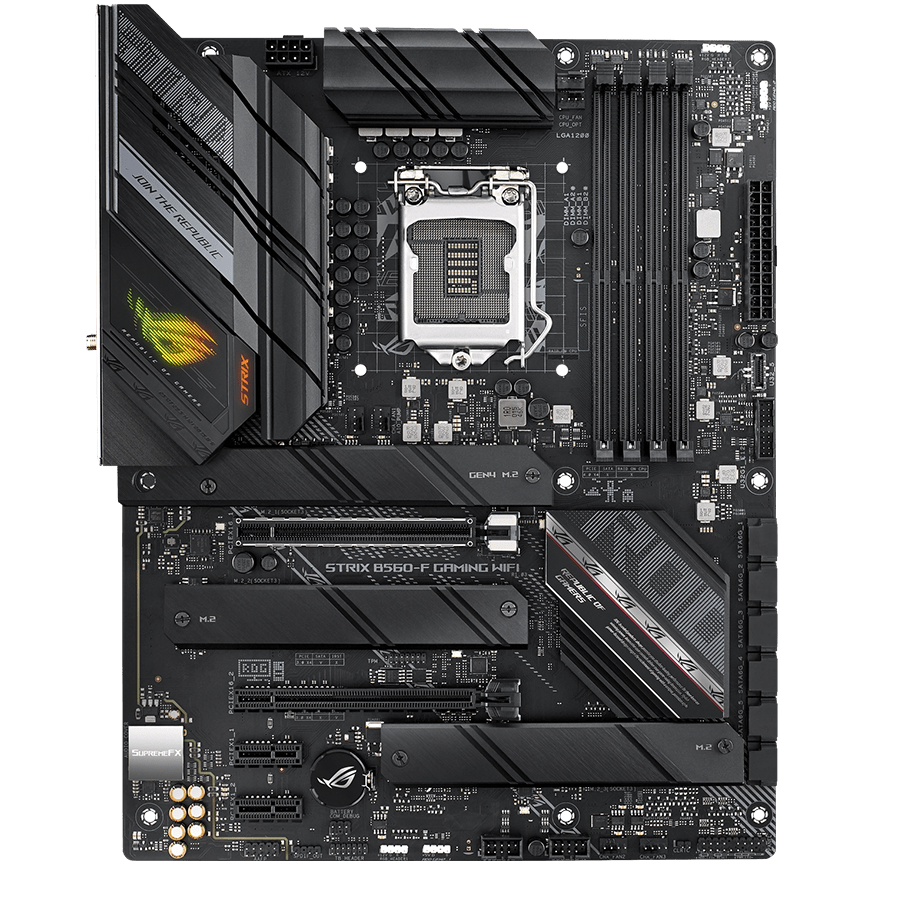

Photo 1/7
Specifications
Technical specs
Motherboard
- Chipset
- Intel B560
- Platform
- Intel
- Form factor
- ATX
- Clear CMOS
- Yes
- BIOS
- 128MB Flash ROM, UEFI AMI BIOS
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
- Series
- ROG STRIX
Processor
- CPU power connector
- یک pcs 8 پین
- CPU power circuit
- 8+2 فاز
- CPU generation
- نسل یازدهم, نسل دهم
- Socket
- Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
- CPU socket
- LGA-1200
Memory
- Memory type
- DDR4
- RAM capacity
- 128 GB
- RAM slots
- 4 pcs
- Memory
- DDR4 3200MHz
Expansion Slots
- PCIe x1
- PCIe 3.0, 2 PCS
- PCIe x4
- No
- PCIe x16
- یک slot PCIe 4.0 x16, یک slot PCIe 3.0 x16
Storage
- M.2
- دو pcs PCIe 3.0, یک pcs PCIe 4.0
- SATA III
- 6 pcs
I/O & Connectivity
- USB 2.0
- 4 pcs
- USB 3.0
- No
- USB 3.1
- No
- USB 3.2
- 5 pcs
- HDMI
- Yes
- DisplayPort
- Yes
- Thunderbolt
- 1 PCS, به صورت کانکتور connectivity
- LAN
- Intel 2.5Gb Ethernet port
- Wi-Fi
- Intel Wi-Fi 6
- Communication protocols
- 802.11a/b/g/n/ac/ax
- Bluetooth
- Yes
- Audio
- Realtek ALC S1220A 7.1 Surround Sound High Definition Audio CODEC
- Audio channels
- 7.1 کانال
- Digital audio
- USB Type-C
Power
- Power switch
- No
Other specs
- Multi-GPU support
- No
- PCI
- No
- Configure
- دو کاناله
- Intel Optane
- Yes
- D-Sub
- No
- DVI
- No
- 3.5 mm jack
- 5 pcs
- Debug display
- No
- LED color
- ARGB
