ASUS

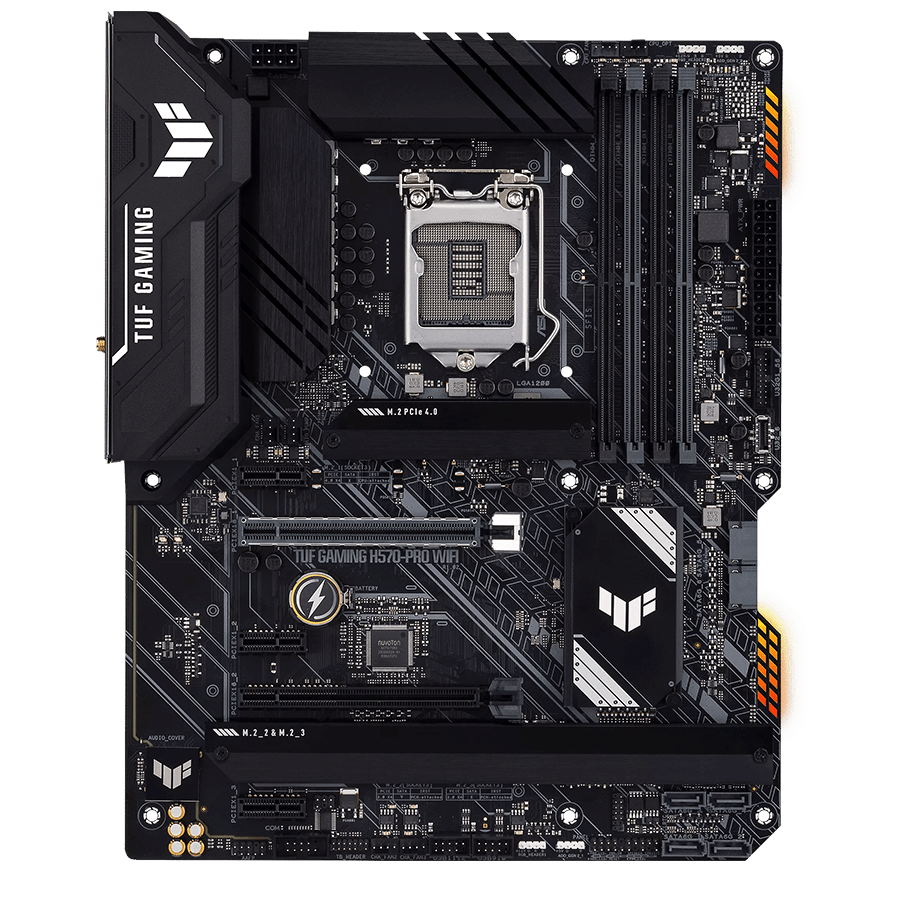

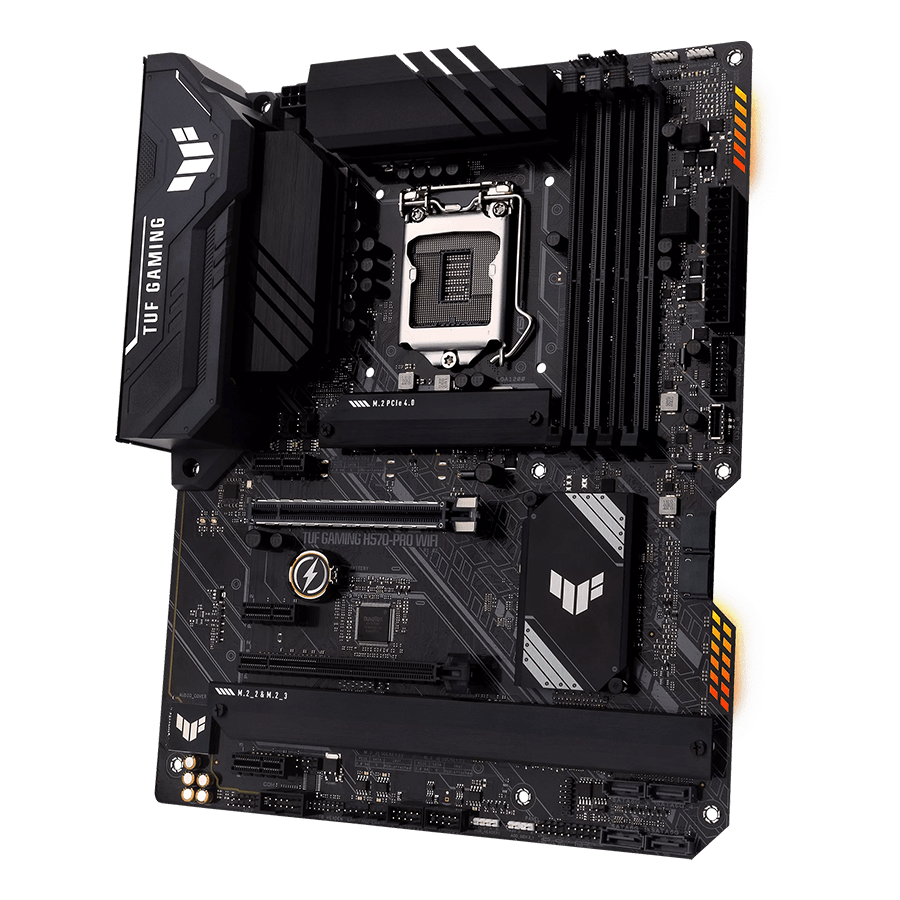

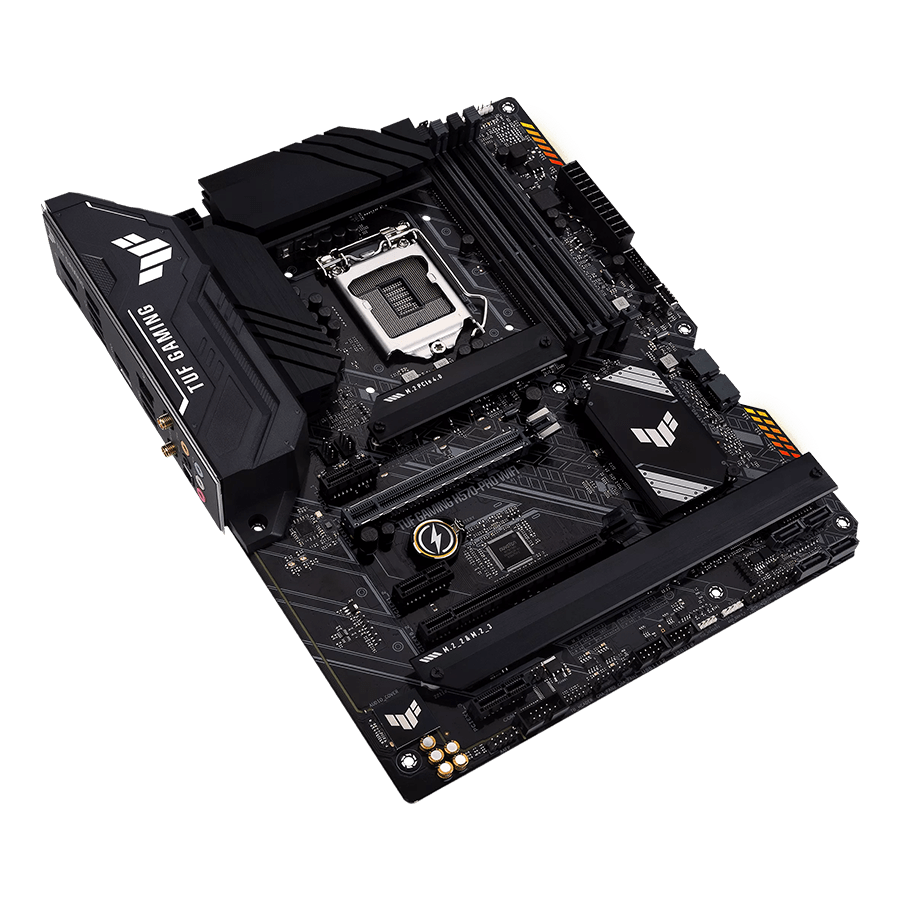

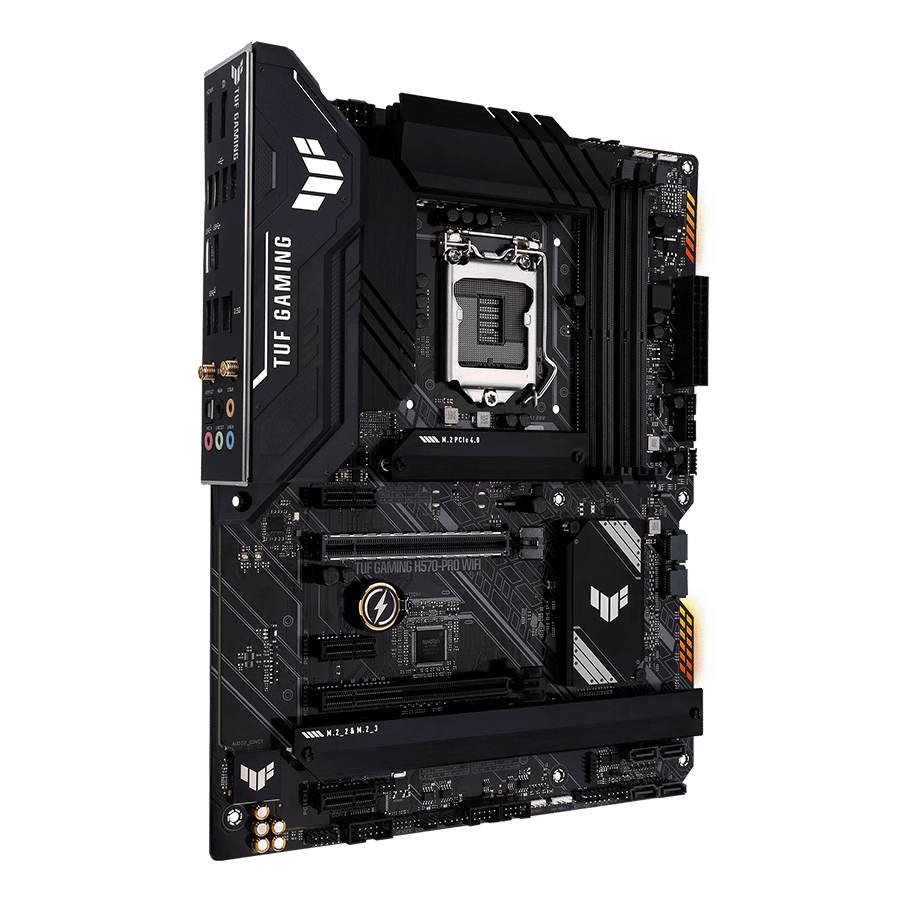

ASUS TUF GAMING H570-PRO WIFI
Intel® H570 (LGA 1200) ATX gaming motherboard with PCIe 4.0, three M.2 slots, 8+1 DrMOS power stages, Intel® WiFi 6, Realtek 2.5 Gb Ethernet, HDMI 2.0, DisplayPort™, rear USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type C®, Thunderbolt™ 4 support, SATA 6 Gbps and Aura Sync RGB lighting.
Product image gallery
About this product
Details & use
Intel® H570 (LGA 1200) ATX gaming motherboard with PCIe 4.0, three M.2 slots, 8+1 DrMOS power stages, Intel® WiFi 6, Realtek 2.5 Gb Ethernet, HDMI 2.0, DisplayPort™, rear USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type C®, Thunderbolt™ 4 support, SATA 6 Gbps and Aura Sync RGB lighting.
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/6
Specifications
Technical specs
Motherboard
- Chipset
- Intel H570
- Platform
- Intel
- Form factor
- ATX
- Clear CMOS
- Yes
- BIOS
- 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Operating system
- Windows® 10 64-bit, Windows® 11 64-bit
- Series
- TUF Gaming
Processor
- CPU power connector
- یک pcs 8 پین
- CPU power circuit
- 8+1 فاز
- CPU generation
- نسل یازدهم, نسل دهم
- Socket
- Intel Core i3/i5/i7/i9 , Pentium Gold and Celeron
- CPU socket
- LGA-1200
Memory
- Memory
- supports memory RAM DDR4 با up to frequency 5000 MHz
- RAM capacity
- 128 GB
- Memory type
- DDR4
- RAM slots
- 4 pcs
Expansion Slots
- PCIe x1
- PCIe 3.0, 3 pcs
- PCIe x4
- No
- PCIe x16
- یک slot PCIe 4.0 x16, یک slot PCIe 3.0 x16
Storage
- SATA III
- 6 pcs
- M.2
- یک pcs PCIe 4.0, دو pcs PCIe 3.0

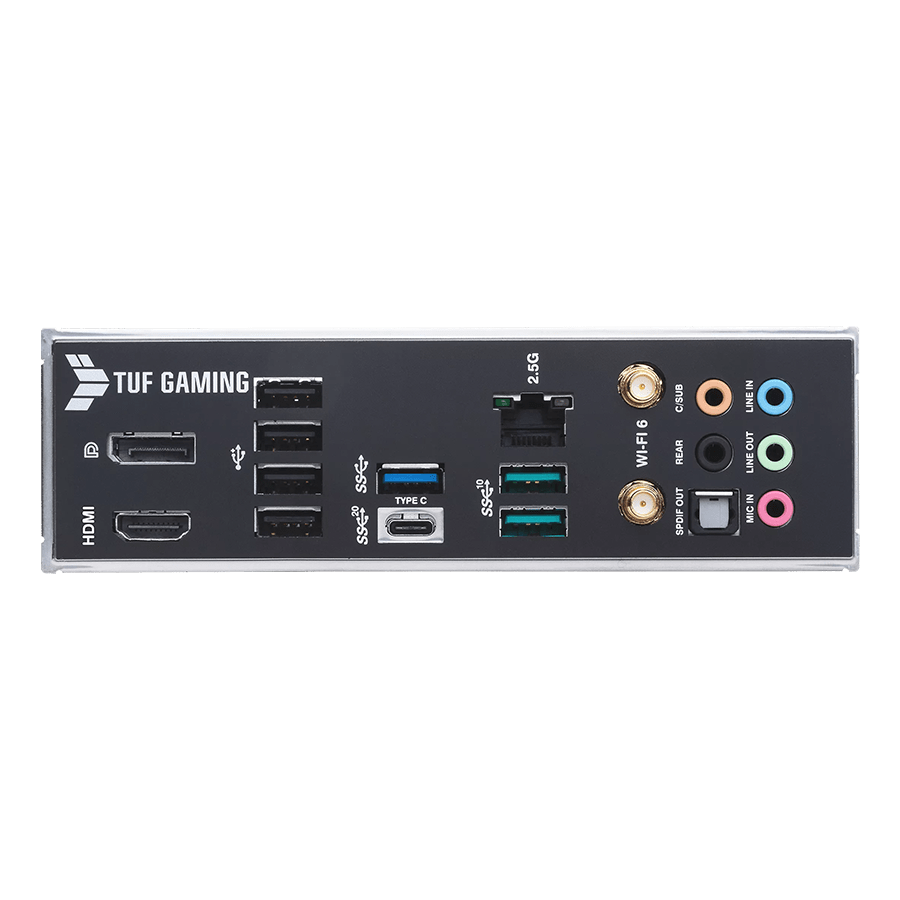

I/O & Connectivity
- Audio
- Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Digital audio
- OPTICAL S/PDIF
- Audio channels
- 7.1 کانال
- Communication protocols
- supports frequency 2.4/5 گیگاهرتز
- Wi-Fi
- Intel Wi-Fi 6
- LAN
- Realtek 2.5Gb Ethernet
- HDMI
- Yes
- DisplayPort
- Yes
- Thunderbolt
- 1 PCS, به صورت کانکتور connectivity
- USB 3.2
- 4 pcs
- USB 3.1
- No
- USB 3.0
- No
- USB 2.0
- 4 pcs
Power
- Power switch
- No
Other specs
- 3.5 mm jack
- 5 pcs
- DVI
- No
- D-Sub
- No
- Intel Optane
- Yes
- Multi-GPU support
- No
- PCI
- No
- Configure
- دو کاناله
- Debug display
- No
- LED color
- ARGB
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Audio: Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
Power switch: No
Digital audio: OPTICAL S/PDIF
Memory: supports RAM DDR4 با up to frequency 5000 MHz
