SilverStone ST30SF

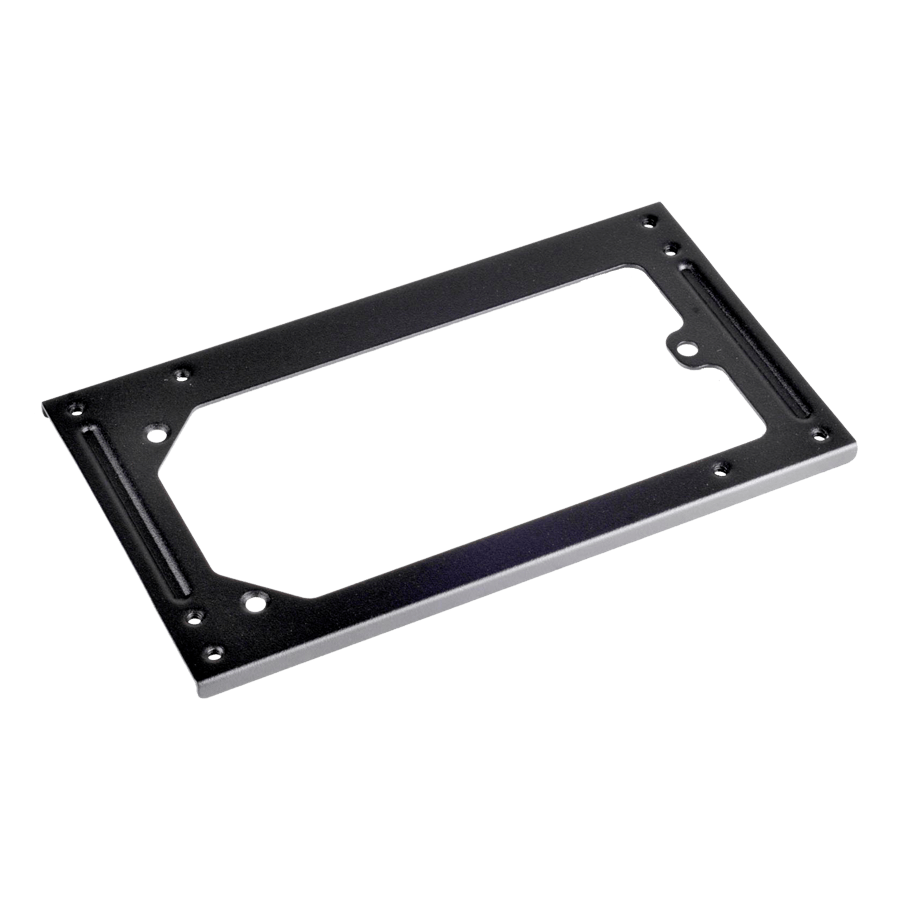

￭ Intelligent semi-fanless operation (V1.0 only) ￭ Supports standard SFX form factor and ATX via included bracket ￭ 300W continuous power output at 50℃ temperature rated for 24/7 operation (V1.0) ￭ 300W continuous power output at 40℃ temperature rated for 24/7 operation (V2.0) ￭ 80 PLUS Bronze level efficiency (82% ~ 85% efficiency at 20% ~ 100% loading) ￭ Class-leading single +12V rail ￭ Silent running 80mm fan (V1.0) ￭ Silent running 92mm fan (V2.0) ￭ Single PCI-E 6pin connectors support ￭ Act
Product image gallery
About this product
Details & use
￭ Intelligent semi-fanless operation (V1.0 only) ￭ Supports standard SFX form factor and ATX via included bracket ￭ 300W continuous power output at 50℃ temperature rated for 24/7 operation (V1.0) ￭ 300W continuous power output at 40℃ temperature rated for 24/7 operation (V2.0) ￭ 80 PLUS Bronze level efficiency (82% ~ 85% efficiency at 20% ~ 100% loading) ￭ Class-leading single +12V rail ￭ Silent running 80mm fan (V1.0) ￭ Silent running 92mm fan (V2.0) ￭ Single PCI-E 6pin connectors support ￭ Active PFC
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/8
Specifications
Technical specs
Performance & Compatibility
- Input Frequency Range
- 47 تا 63 هرتز
Design & Dimensions
- Cooling system

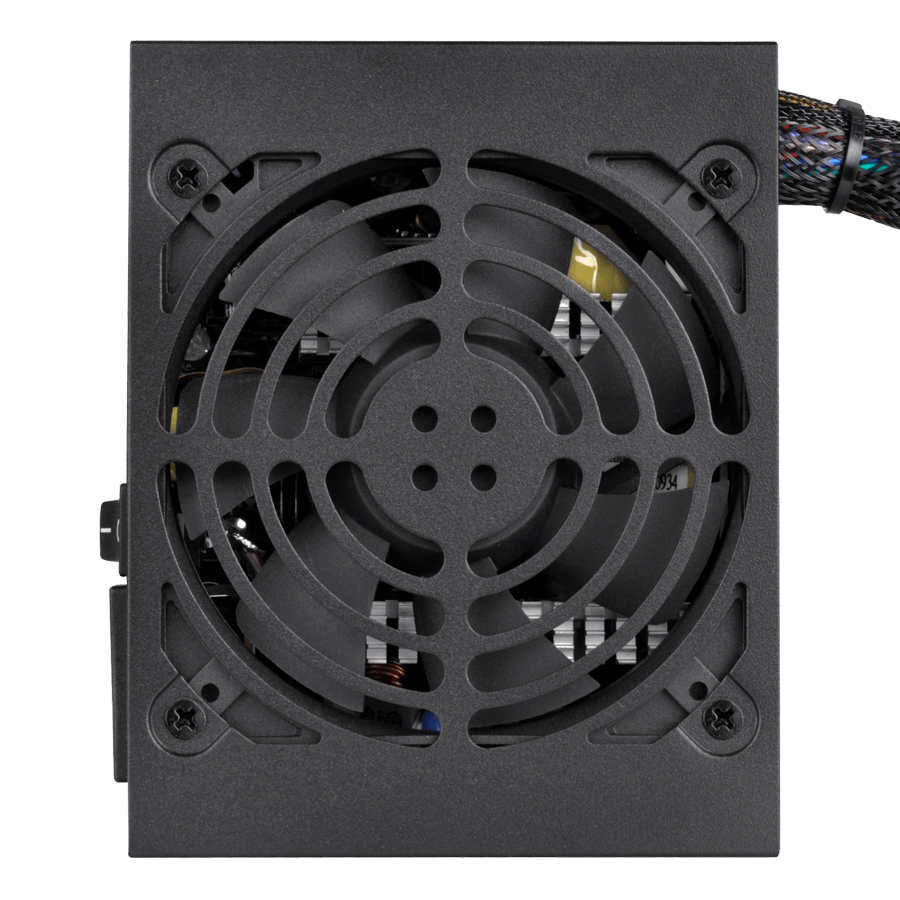

- Single 92mm FDB fan
- Dimensions
- 100×63.5×125 mm
- Weight
- 1 kg
- Form factor
- SFX
Other specs
- MTBF
- 100,000 hours
- Combined 12V
- 25 آمپر
- 12V
- 0.3 آمپر
- Color
- Black (lead-free paint)
- 6-pin PCIe
- 1 pcs
- Certification
- 80 PLUS Bronze
- 8-pin PCIe
- No
- Efficiency
- 82% ~ 85% at 20% ~ 100% loading
- 3.3V
- 16 آمپر
- Cabling
- connectivity دائم
- Wattage
- 300 W
- Input voltage
- 90 تا 264 V
- 5V
- 16 آمپر
- 24-pin connector
- 1 pcs
- Operating temperature
- 0 تا 40 ° سانتی گراد
- 8-pin EPS
- 1 pcs
- 15-pin SATA
- 3 pcs
- 4-pin Molex
- 2 pcs
- FDD
- 1 PCS
- Protection
- Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection
- Active PFC
- Yes
- Noise level
- 18 dBA minimum
- LED color
- No
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
MTBF: 100,000 hours
Combined 12V: 25 آمپر
Cooling system: Single 92mm FDB fan
12V: 0.3 آمپر
