SilverStone

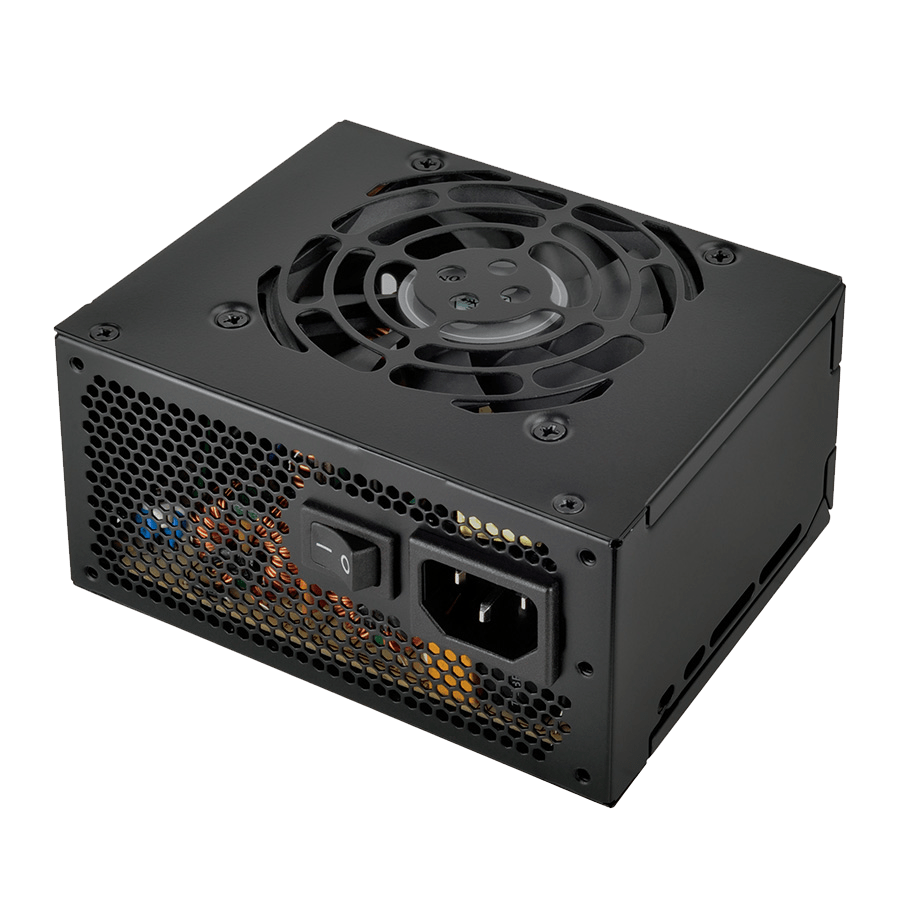

SilverStone ST45SF

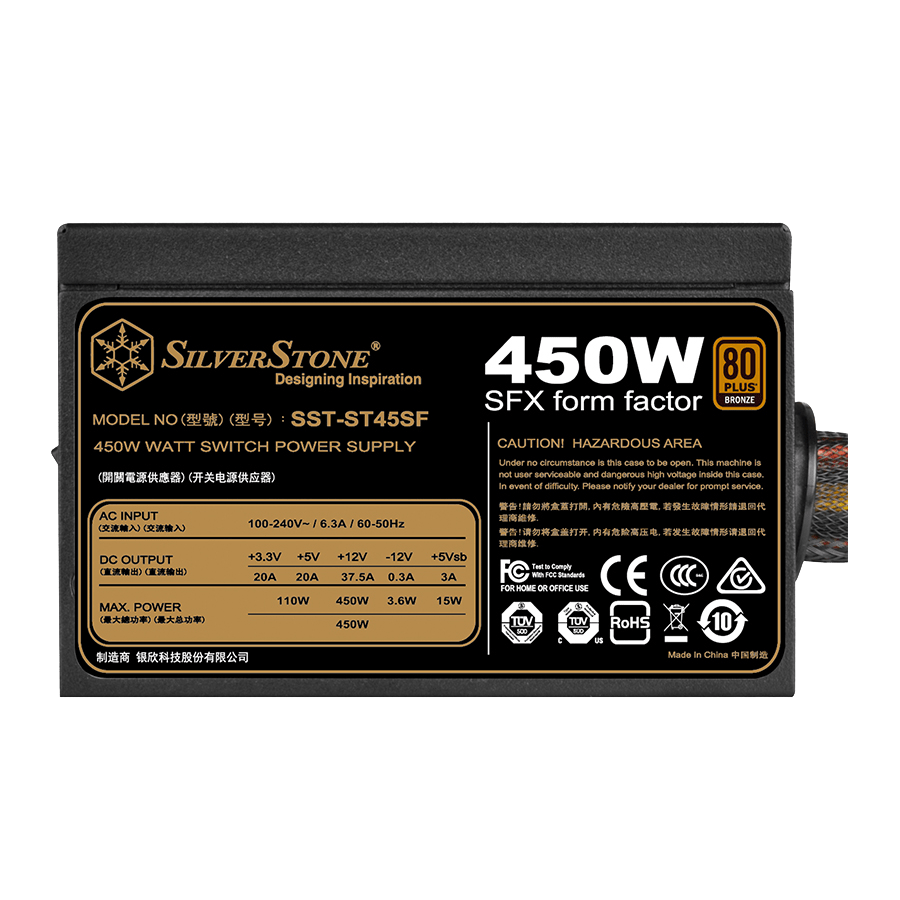

￭ Supports standard SFX form factor and ATX via included bracket ￭ 450W continuous power output at 50℃ temperature rated for 24/7 operation (V2.0) ￭ 450W continuous power output at 40℃ temperature rated for 24/7 operation (V3.0) ￭ 80 PLUS Bronze level efficiency (82%~85% efficiency at 20%~100% loading) ￭ Class-leading single +12V rail with 36A ￭ Silent running 80mm fan (V2.0) ￭ Silent running 92mm fan (V3.0) ￭ Single PCI-E 8pin and dual PCI-E 6pin connectors support ￭ Active PFC
Product image gallery
About this product
Details & use
￭ Supports standard SFX form factor and ATX via included bracket ￭ 450W continuous power output at 50℃ temperature rated for 24/7 operation (V2.0) ￭ 450W continuous power output at 40℃ temperature rated for 24/7 operation (V3.0) ￭ 80 PLUS Bronze level efficiency (82%~85% efficiency at 20%~100% loading) ￭ Class-leading single +12V rail with 36A ￭ Silent running 80mm fan (V2.0) ￭ Silent running 92mm fan (V3.0) ￭ Single PCI-E 8pin and dual PCI-E 6pin connectors support ￭ Active PFC
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/8
Specifications
Technical specs
Performance & Compatibility
- Input Frequency Range
- 47 تا 63 هرتز
Design & Dimensions
- Dimensions
- 100×63.5×125 mm
- Weight
- 1 kg
- Form factor
- SFX
- Cooling system
- Single 120mm silent fan
Other specs
- MTBF
- 100,000 hours
- Combined 12V
- 36 آمپر
- Color
- Black (lead-free paint)

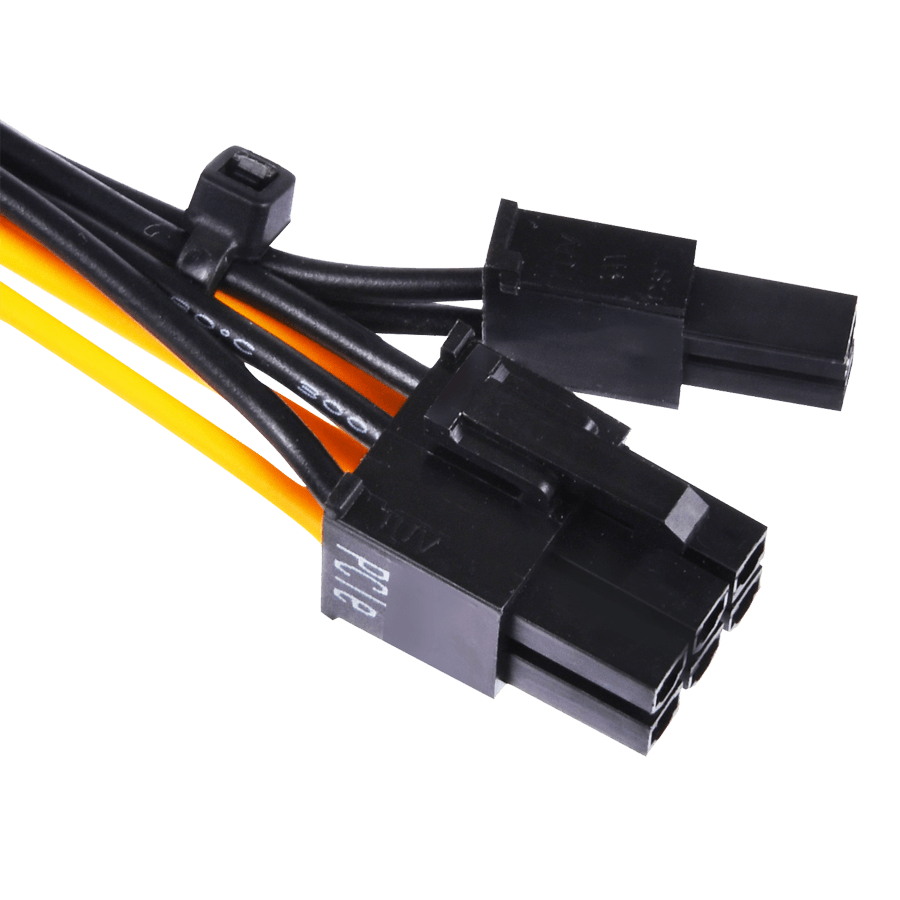

- 8-pin PCIe
- 1 pcs

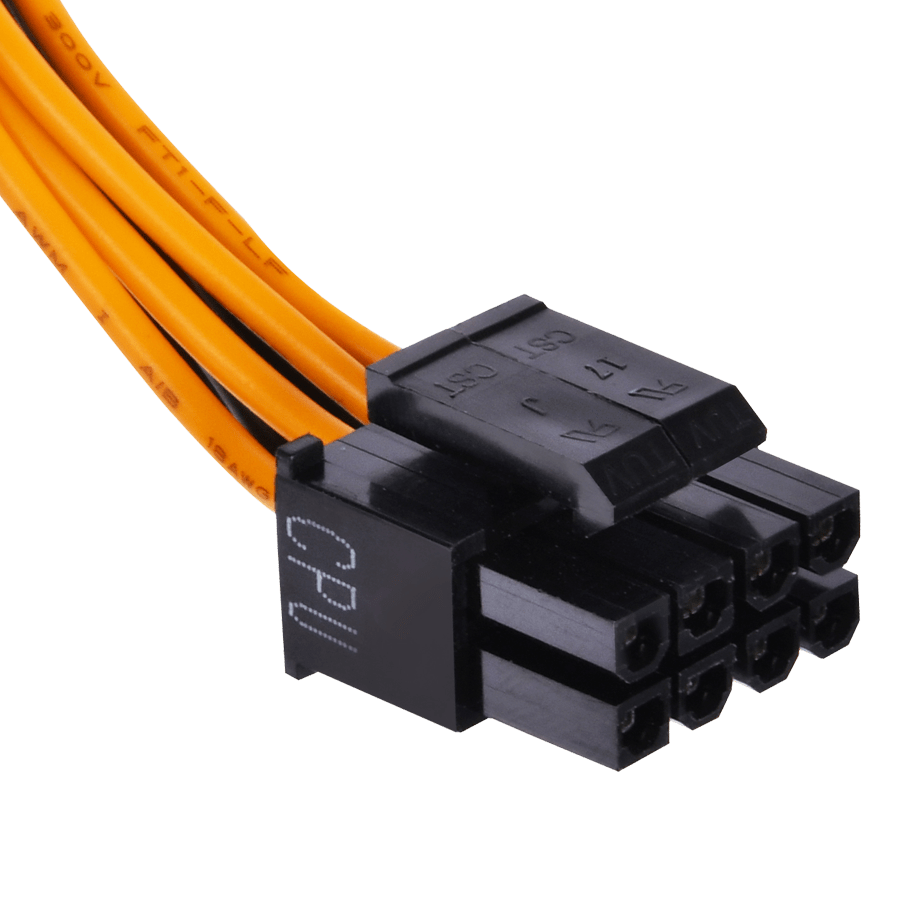

- 8-pin EPS
- 1 pcs
- Efficiency
- 82% ~ 85% at 20% ~ 100% loading
- 3.3V
- 21 آمپر
- Cabling
- connectivity دائم
- Input voltage
- 90 تا 264 V
- 6-pin PCIe
- 1 pcs
- Wattage
- 450 W
- 12V
- 0.3 آمپر
- 5V
- 22 آمپر

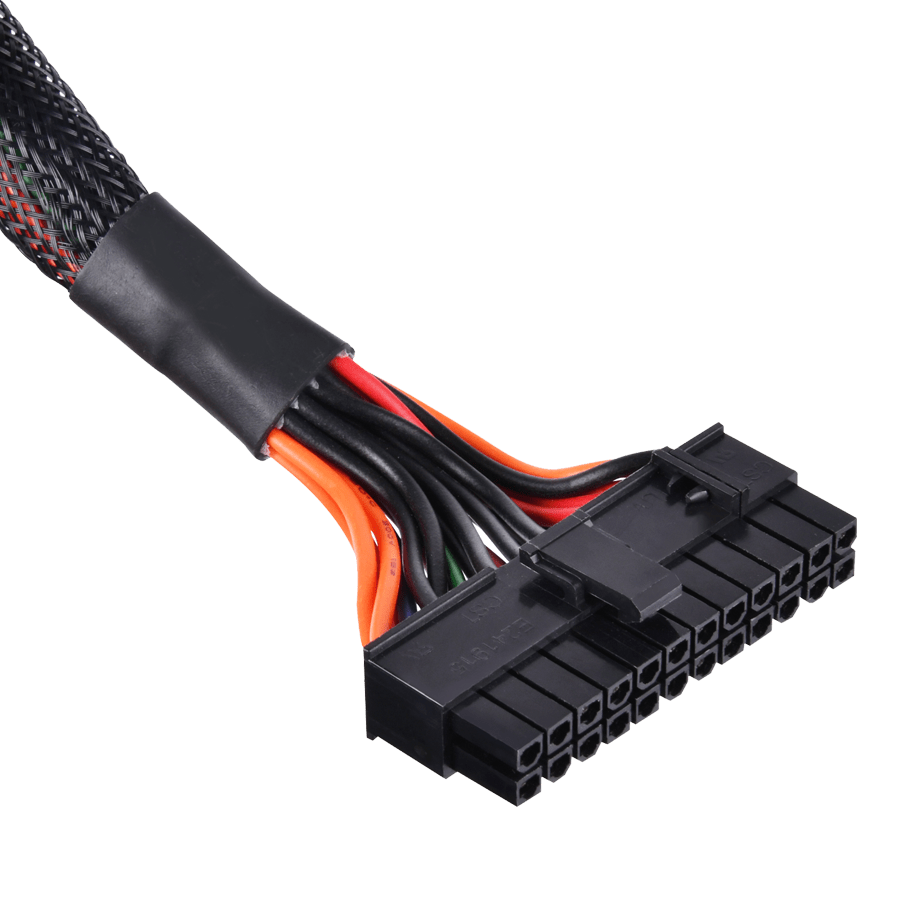

- 24-pin connector
- 1 pcs
- Operating temperature
- 0 تا 40 ° سانتی گراد
- 12-pin PCIe
- No

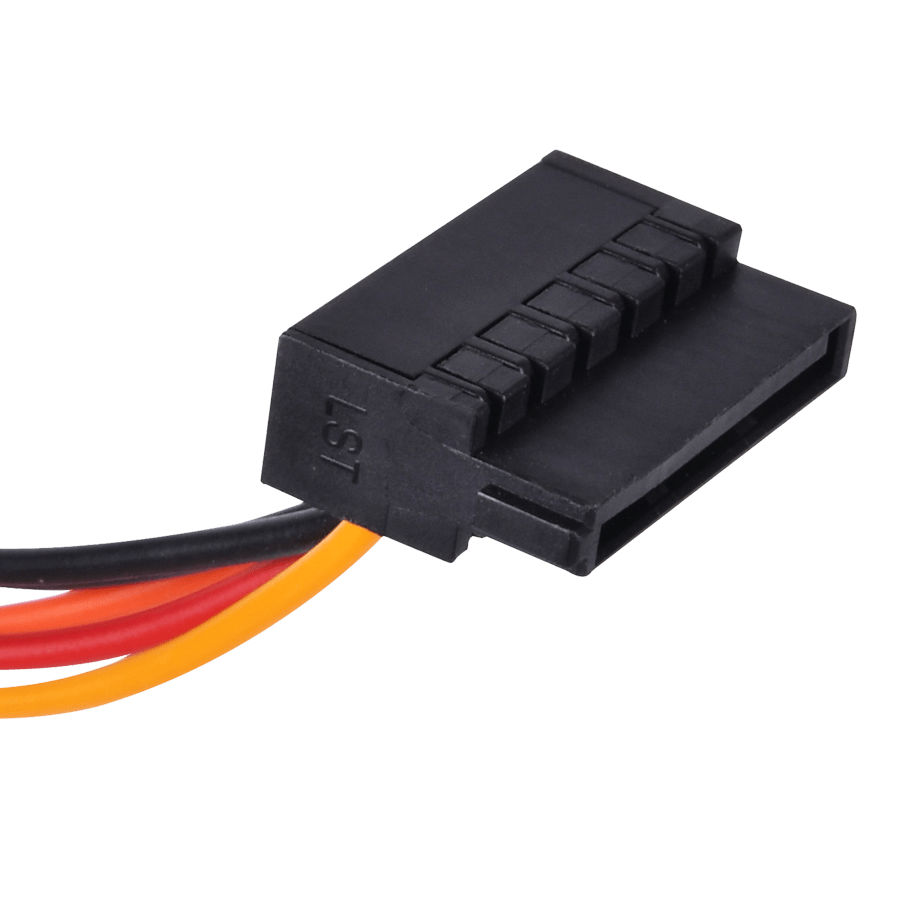

- 15-pin SATA
- 3 pcs

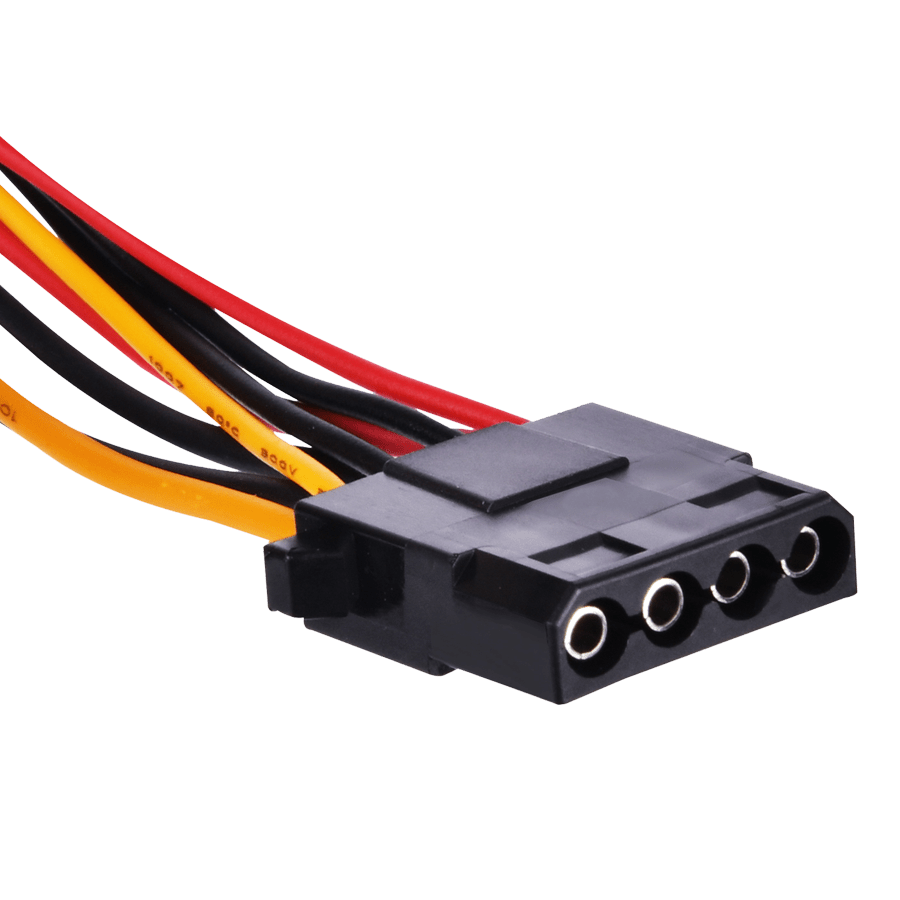

- 4-pin Molex
- 2 pcs
- FDD
- 1 PCS
- Protection
- OCP, OVP, SCP
- Active PFC
- Yes
- Noise level
- 18 dBA minimum
- LED color
- No
- Certification
- 80 PLUS Bronze
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
MTBF: 100,000 hours
Combined 12V: 36 آمپر
Dimensions: 125 mm (W) x 63.5 mm (H) x 100 mm (D) 4.92" (W) x 2.5" (H) x 3.94" (D)
Input Frequency Range: 47Hz ~ 63Hz
