SilverStone ST50F-ES230
80 PLUS 230V EU 500W ATX power supply with all black flat cable design

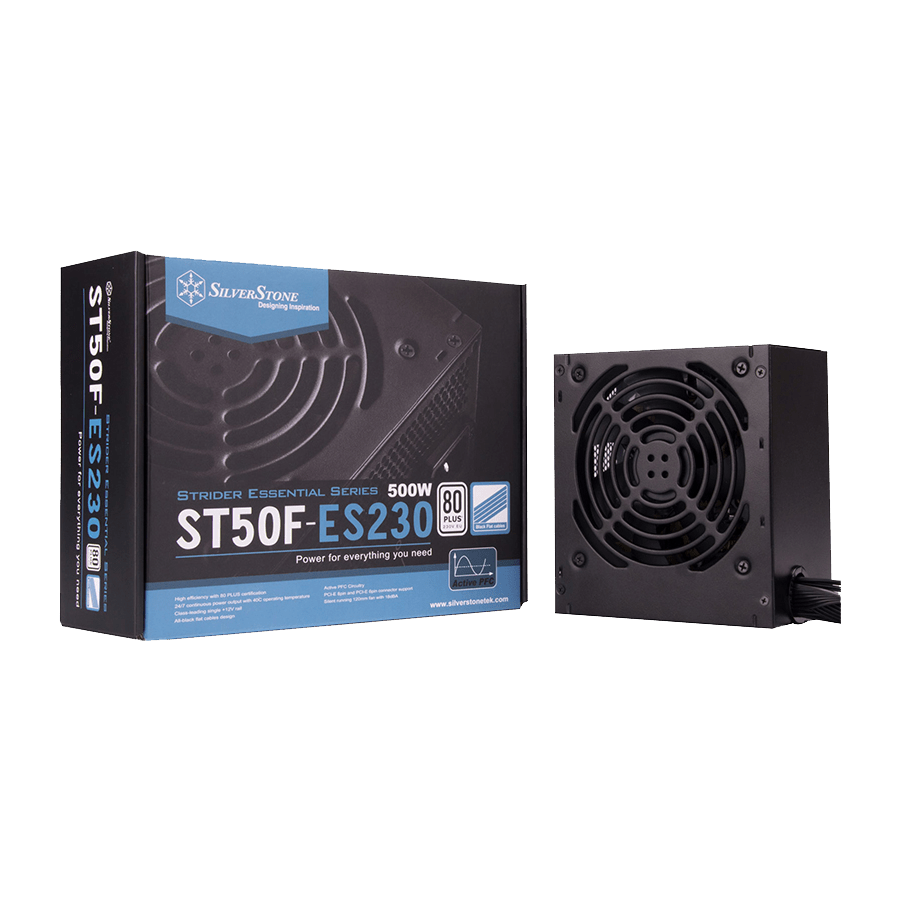

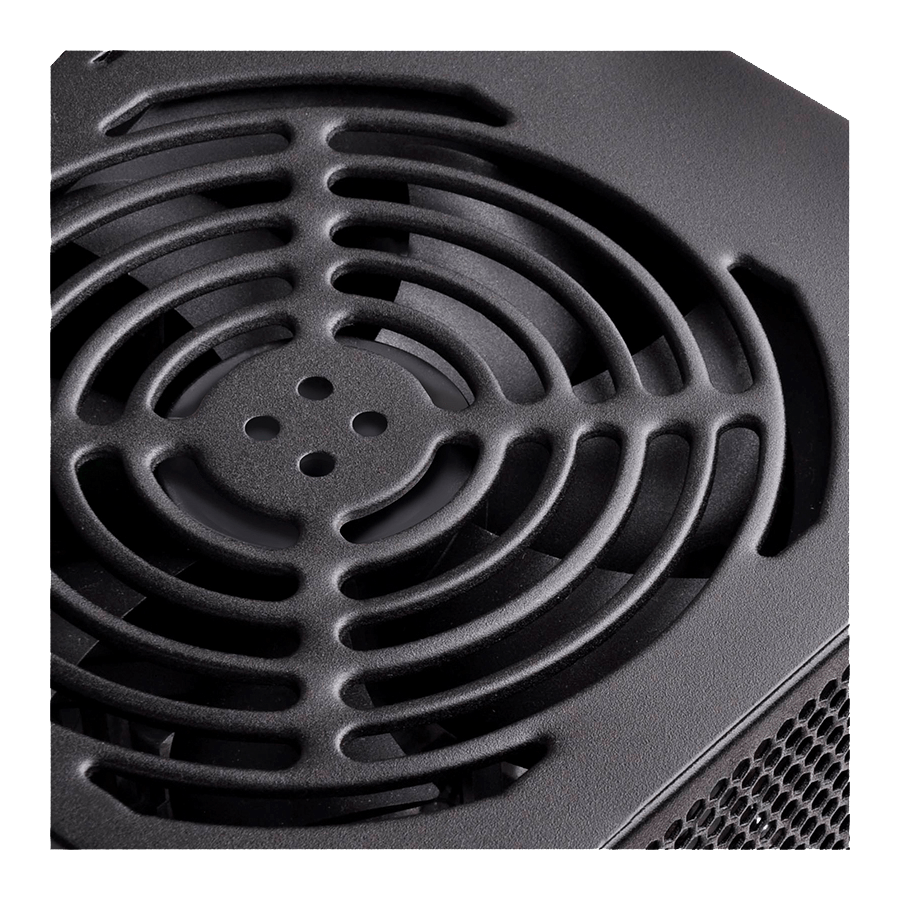

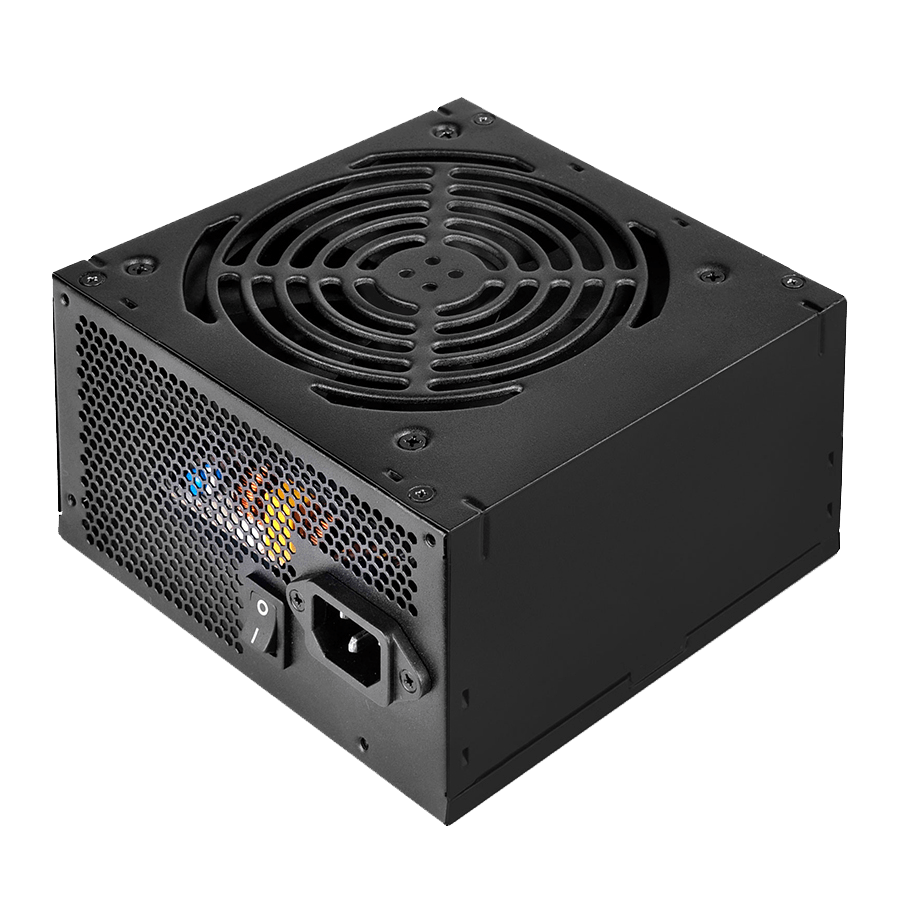

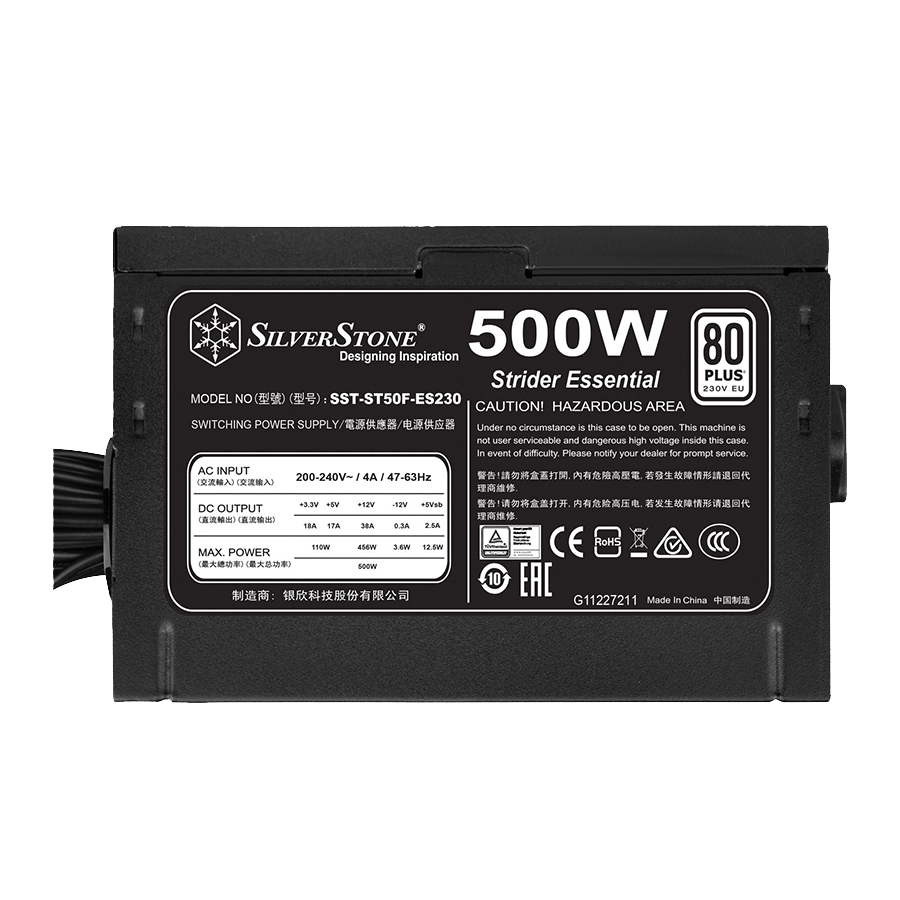

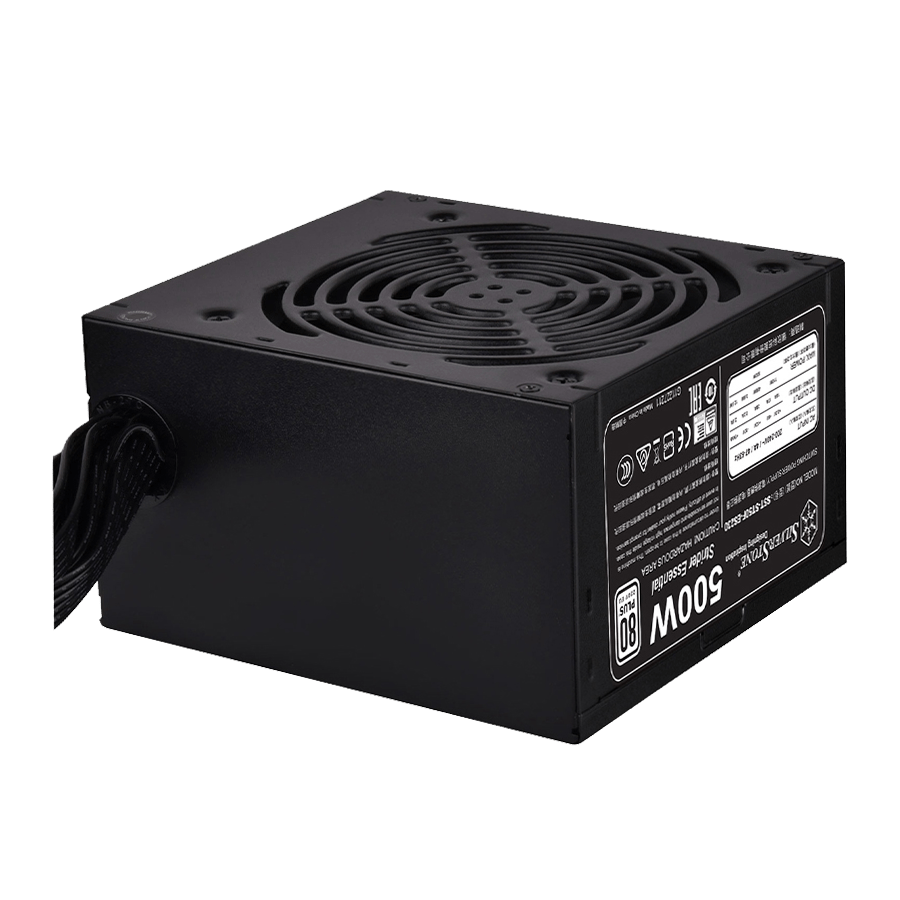

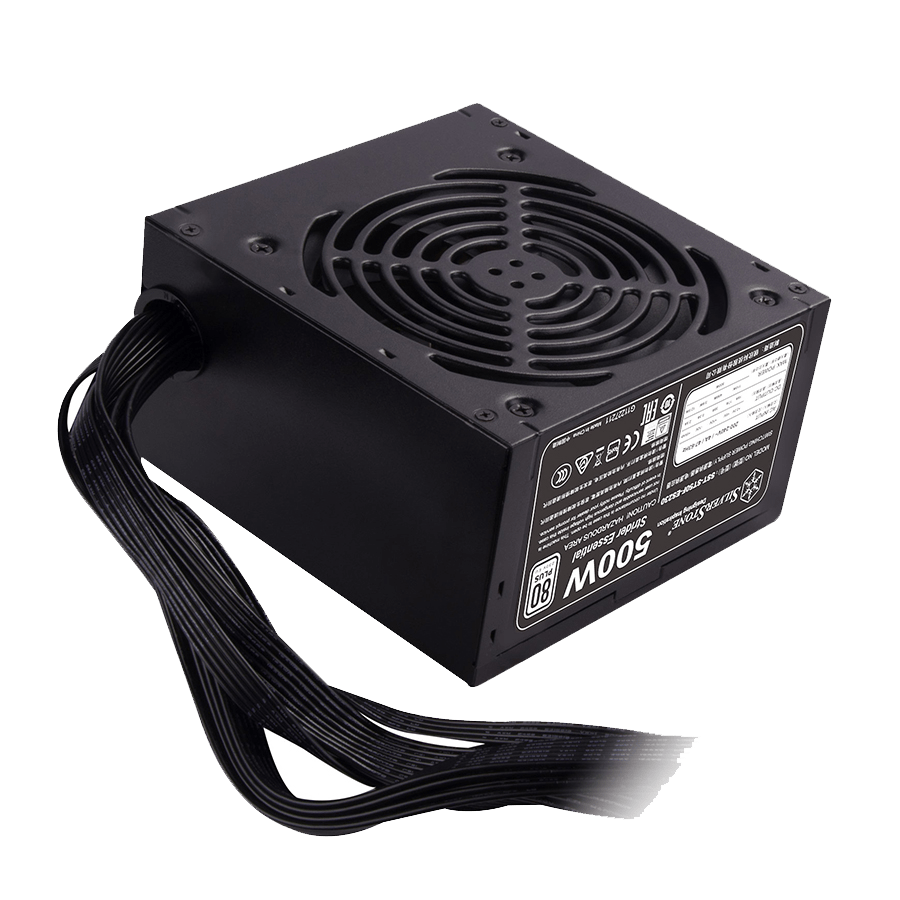

Product image gallery
About this product
Details & use
80 PLUS 230V EU 500W ATX power supply with all black flat cable design
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/6
Specifications
Technical specs
Performance & Compatibility
- Input Frequency Range
- 47 تا 63 هرتز
Design & Dimensions
- Cooling system
- Single 120mm silent fan
- Weight
- 1.31 kg
- Form factor
- ATX
- Dimensions
- 140×86×150 mm
Other specs
- 12V
- 0.3 آمپر
- Combined 12V
- 38 آمپر
- Color
- Black (lead-free paint)
- 15-pin SATA
- 2 pcs
- Efficiency
- 82% ~ 85% at 20% ~ 100% loading
- 8-pin PCIe
- 2 pcs
- Operating temperature
- 0 تا 40 ° سانتی گراد
- Cabling
- connectivity دائم
- Wattage
- 500 W
- Input voltage
- 180 ~ 264 Vrms
- 5V
- 18 آمپر
- 24-pin connector
- 1 pcs
- MTBF
- 100,000 hours
- 8-pin EPS
- 1 pcs
- 4-pin Molex
- 5 pcs
- FDD
- 1 PCS
- Protection
- Over Power Protection Over Voltage Protection Short Circuit Protection
- Active PFC
- Yes
- Certification
- 80 PLUS
- 3.3V
- 18 آمپر
- Noise level
- 18 dBA minimum
- LED color
- No
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Cooling system: Single 120mm silent fan
12V: 0.3 آمپر
Combined 12V: 38 آمپر
Input Frequency Range: 47Hz ~ 63Hz
