SilverStone
SilverStone ST45F-ES230
￭ High efficiency with 80 PLUS certification ￭ 24/7 continuous power output with 40℃ operating temperature ￭ Class-leading single +12V rail ￭ Active PFC Circuitry ￭ PCIe 8pin and PCIe 6pin connector support ￭ Silent running 120mm fan with 18dBA
Product image gallery
About this product
Details & use
￭ High efficiency with 80 PLUS certification ￭ 24/7 continuous power output with 40℃ operating temperature ￭ Class-leading single +12V rail ￭ Active PFC Circuitry ￭ PCIe 8pin and PCIe 6pin connector support ￭ Silent running 120mm fan with 18dBA
Technical specifications are provided by Taba Trading Expansion. Products are sold exclusively through authorized dealers. For availability, pricing, and orders, please contact the sales team.
Photo 1/8
Specifications
Technical specs
Performance & Compatibility
- Input Frequency Range
- 47 تا 63 هرتز
Design & Dimensions
- Dimensions
- 140×86×150 mm
- Weight
- 1.29 kg
- Form factor
- ATX
- Cooling system

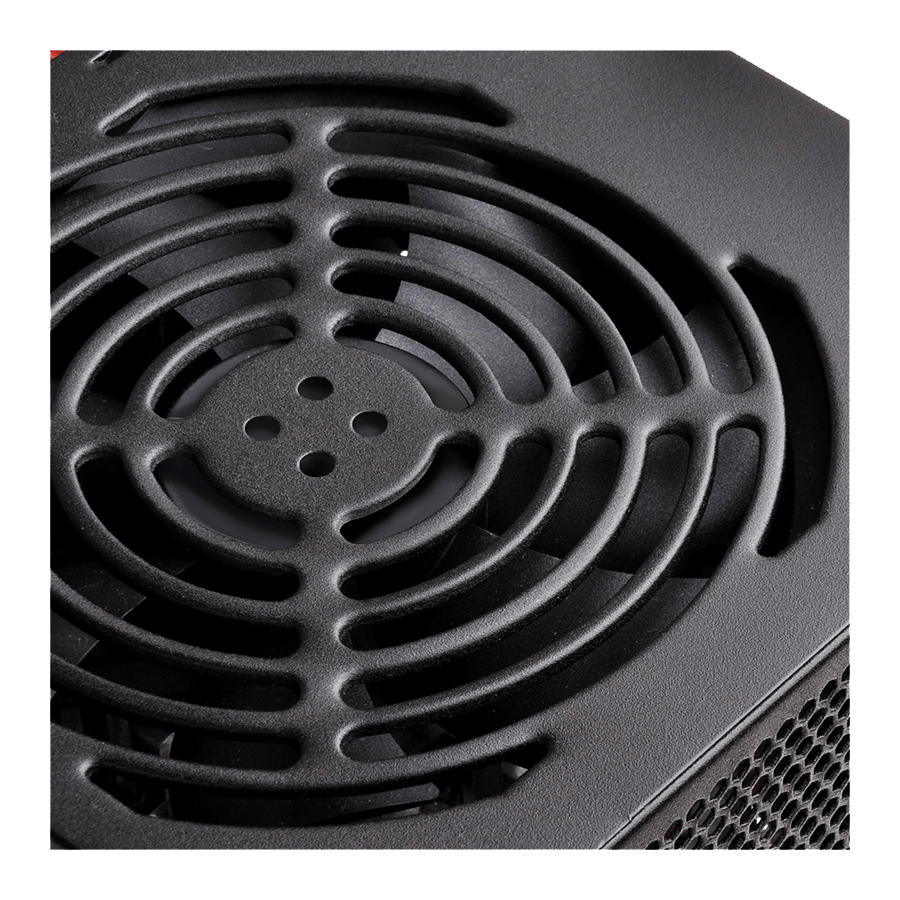

- Single 120mm silent fan
Other specs
- Noise level
- 18 dBA minimum
- 12V
- 0.3 آمپر
- Combined 12V
- 34 آمپر
- Color
- Black (lead-free paint)
- 15-pin SATA
- 6 pcs
- Operating temperature
- 0 تا 40 ° سانتی گراد
- 8-pin PCIe
- 2 pcs
- MTBF
- 100,000 hours
- 3.3V
- 17 آمپر
- Wattage
- 450 W
- Input voltage
- 180 ~ 264 Vrms
- Cabling
- connectivity دائم
- 5V
- 16 آمپر
- 24-pin connector
- 1 pcs
- 8-pin EPS
- 1 pcs
- 4-pin Molex
- 3 pcs
- Protection
- Over Power Protection Over Voltage Protection Short Circuit Protection
- Active PFC
- Yes
- Certification
- 80 PLUS
- Efficiency
- 82% ~ 85% at 20% ~ 100% loading
- LED color
- No
Key points
Why this product?
The standout features that make this model a strong choice for professional builds.
Noise level: 18 dBA minimum
12V: 0.3 آمپر
Dimensions: 150 mm (W) x 86 mm (H) x 140 mm (D) 5.91" (W) x 3.39" (H) x 5.51" (D)
Combined 12V: 34 آمپر
